Review variance relation

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 3585845894
    \(\langle \left(x-\langle x \rangle\right)^2 \rangle = \langle x^2 \rangle-\langle x \rangle^2\)
 no validation is available for declarations
2
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 3585845894
    \(\langle \left(x-\langle x \rangle\right)^2 \rangle = \langle x^2 \rangle-\langle x \rangle^2\)
  1. 8399484849
    \(\langle x^2 - 2 x \langle x \rangle + \langle x \rangle^2 \rangle = \langle x^2 \rangle-\langle x \rangle^2\)
 Not evaluated due to missing term in SymPy
3
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8399484849
    \(\langle x^2 - 2 x \langle x \rangle + \langle x \rangle^2 \rangle = \langle x^2 \rangle-\langle x \rangle^2\)
  1. 2404934990
    \(\langle x^2\rangle -2\langle x \rangle\langle x \rangle+\langle x \rangle^2 = \langle x^2 \rangle-\langle x \rangle^2\)
 Not evaluated due to missing term in SymPy
4
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 2404934990
    \(\langle x^2\rangle -2\langle x \rangle\langle x \rangle+\langle x \rangle^2 = \langle x^2 \rangle-\langle x \rangle^2\)
  1. 4949359835
    \(\langle x^2\rangle -2\langle x^2 \rangle+\langle x \rangle^2 = \langle x^2 \rangle-\langle x \rangle^2\)
 Not evaluated due to missing term in SymPy
5
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 4949359835
    \(\langle x^2\rangle -2\langle x^2 \rangle+\langle x \rangle^2 = \langle x^2 \rangle-\langle x \rangle^2\)
  1. 2494533900
    \(\langle x^2\rangle -\langle x \rangle^2 = \langle x^2 \rangle-\langle x \rangle^2\)
 Not evaluated due to missing term in SymPy
6
  • 0000111345: claim LHS equals RHS
  • number of inputs: 1; feeds: 0; outputs: 0
  • Thus we see that LHS of Eq.~\ref{eq:#1} is equal to RHS.
  1. 2494533900
    \(\langle x^2\rangle -\langle x \rangle^2 = \langle x^2 \rangle-\langle x \rangle^2\)
Not evaluated due to missing term in SymPy

Symbols used in variance relation

Steps and expressions for variance relation

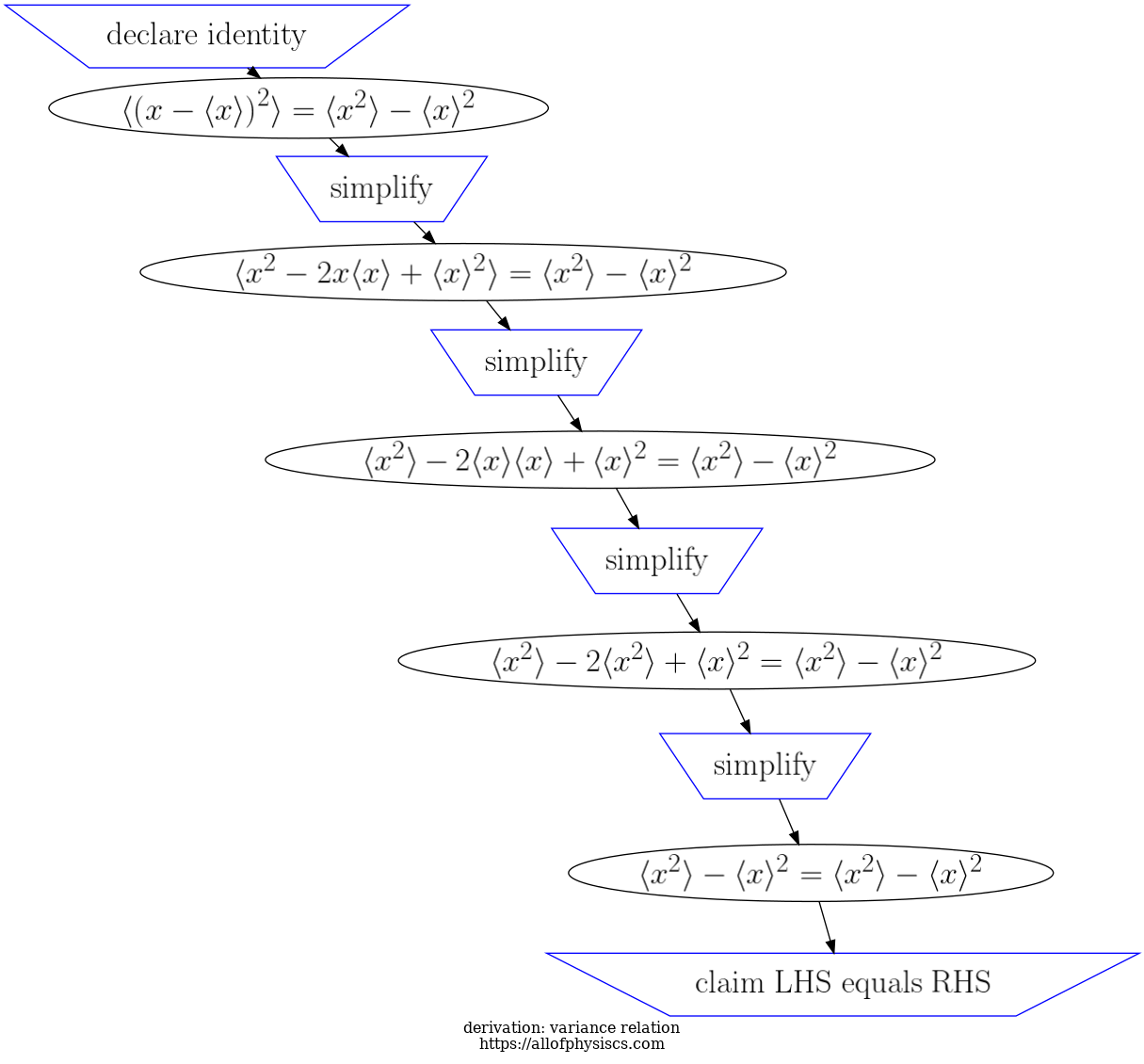

d3js visualization of steps and expressions in variance relation


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.
