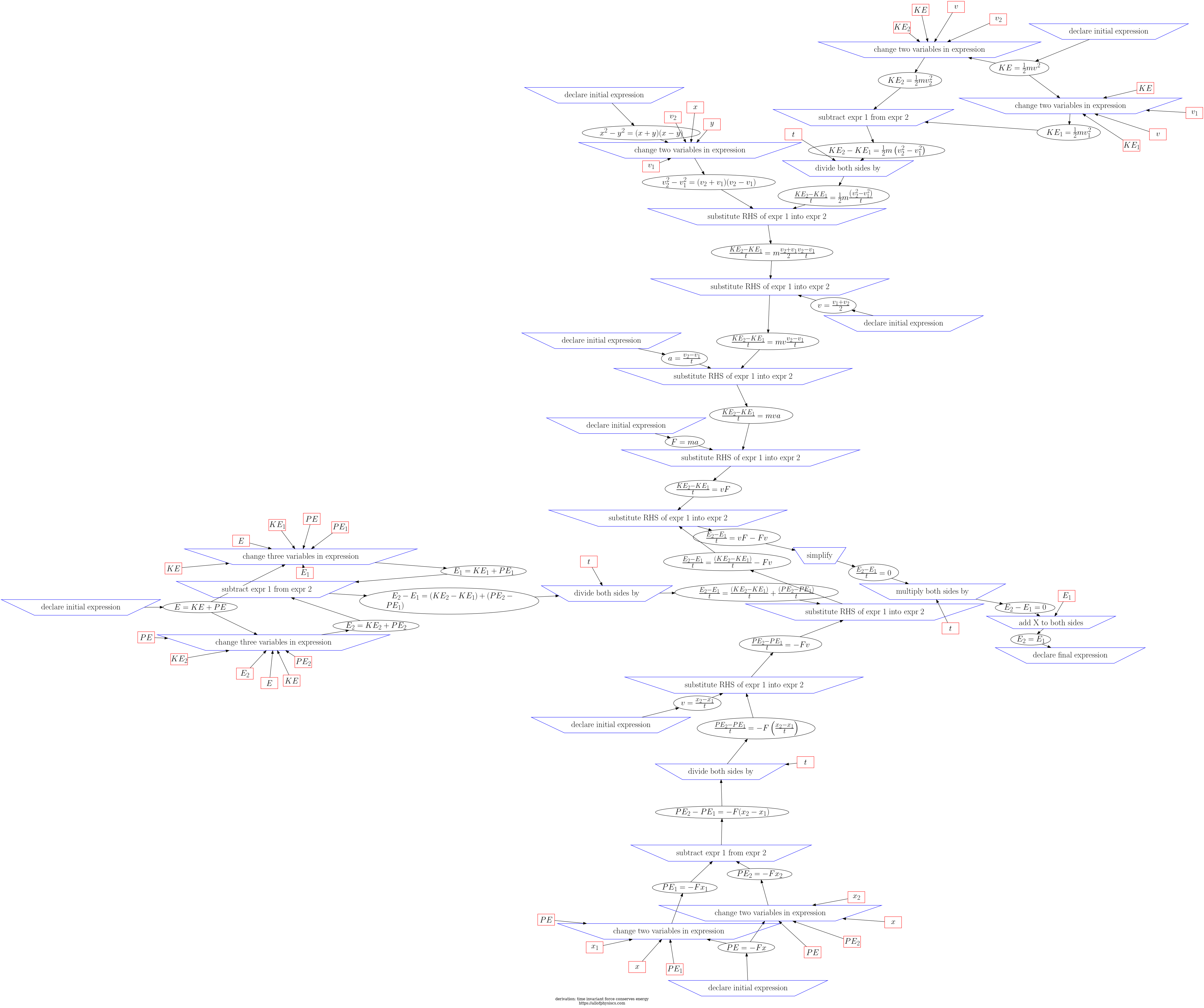

Review time invariant force conserves energy

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 5136652623
    \(E = KE + PE\)
 no validation is available for declarations
2
  • 0000111236: change three variables in expression
  • number of inputs: 1; feeds: 6; outputs: 1
  • Change of variable $#1$ to $#2$ and $#3$ to $#4$ and $#5$ to $#6$ in Eq.~\ref{eq:#7}; yields Eq.~\ref{eq:#8}.
  1. 5136652623
    \(E = KE + PE\)
  1. 5803210729
    \(PE_2\)
  1. 5075406409
    \(PE\)
  1. 7939947931
    \(KE_2\)
  1. 6383056612
    \(KE\)
  1. 2344320475
    \(E_2\)
  1. 1258245373
    \(E\)
  1. 7875206161
    \(E_2 = KE_2 + PE_2\)
 LHS diff is -pdg0004550 + pdg0004931 RHS diff is -pdg0001352 + pdg0004929 + pdg0004930 - pdg0008849
3
  • 0000111236: change three variables in expression
  • number of inputs: 1; feeds: 6; outputs: 1
  • Change of variable $#1$ to $#2$ and $#3$ to $#4$ and $#5$ to $#6$ in Eq.~\ref{eq:#7}; yields Eq.~\ref{eq:#8}.
  1. 5136652623
    \(E = KE + PE\)
  1. 8061701434
    \(PE_1\)
  1. 3809726424
    \(PE\)
  1. 1092872200
    \(KE_1\)
  1. 4147101187
    \(KE\)
  1. 4213426349
    \(E_1\)
  1. 3749492596
    \(E\)
  1. 4303372136
    \(E_1 = KE_1 + PE_1\)
 LHS diff is pdg0004931 - pdg0005579 RHS diff is -pdg0001955 - pdg0004093 + pdg0004929 + pdg0004930
5
  • 0000111222: subtract expr 1 from expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Subtract Eq.~\ref{eq:#1} from Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#2}.
  1. 7875206161
    \(E_2 = KE_2 + PE_2\)
  1. 4303372136
    \(E_1 = KE_1 + PE_1\)
  1. 5514556106
    \(E_2 - E_1 = (KE_2 - KE_1) + (PE_2 - PE_1)\)
 LHS diff is -2*pdg0004550 + 2*pdg0005579 RHS diff is -2*pdg0001352 + 2*pdg0001955 + 2*pdg0004093 - 2*pdg0008849
6
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8357234146
    \(KE = \frac{1}{2} m v^2\)
 no validation is available for declarations
7
  • 0000111984: change two variables in expression
  • number of inputs: 1; feeds: 4; outputs: 1
  • Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\ref{eq:#5}; yields Eq.~\ref{eq:#6}.
  1. 8357234146
    \(KE = \frac{1}{2} m v^2\)
  1. 7408927653
    \(KE\)
  1. 5011888122
    \(v_2\)
  1. 9305761407
    \(v\)
  1. 6838659900
    \(KE_2\)
  1. 7676652285
    \(KE_2 = \frac{1}{2} m v_2^2\)
 LHS diff is -pdg0001352 + pdg0004929 RHS diff is pdg0005156*(pdg0001352**2 - pdg0004770**2)/2
8
  • 0000111984: change two variables in expression
  • number of inputs: 1; feeds: 4; outputs: 1
  • Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\ref{eq:#5}; yields Eq.~\ref{eq:#6}.
  1. 8357234146
    \(KE = \frac{1}{2} m v^2\)
  1. 1934877404
    \(KE\)
  1. 3105350101
    \(v_1\)
  1. 5398681503
    \(v\)
  1. 6964468708
    \(KE_1\)
  1. 4928007622
    \(KE_1 = \frac{1}{2} m v_1^2\)
 LHS diff is -pdg0001955 + pdg0004929 RHS diff is pdg0005156*(pdg0001955**2 - pdg0002473**2)/2
10
  • 0000111222: subtract expr 1 from expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Subtract Eq.~\ref{eq:#1} from Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#2}.
  1. 7676652285
    \(KE_2 = \frac{1}{2} m v_2^2\)
  1. 4928007622
    \(KE_1 = \frac{1}{2} m v_1^2\)
  1. 5733146966
    \(KE_2 - KE_1 = \frac{1}{2} m \left(v_2^2 - v_1^2\right)\)
 LHS diff is -2*pdg0001352 + 2*pdg0001955 RHS diff is pdg0005156*(pdg0002473**2 - pdg0004770**2)
11
  • 0000111975: divide both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 5733146966
    \(KE_2 - KE_1 = \frac{1}{2} m \left(v_2^2 - v_1^2\right)\)
  1. 6554292307
    \(t\)
  1. 4270680309
    \(\frac{KE_2 - KE_1}{t} = \frac{1}{2} m \frac{\left( v_2^2 - v_1^2 \right)}{t}\)
 valid
12
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 5781981178
    \(x^2 - y^2 = (x+y)(x-y)\)
 no validation is available for declarations
13
  • 0000111984: change two variables in expression
  • number of inputs: 1; feeds: 4; outputs: 1
  • Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\ref{eq:#5}; yields Eq.~\ref{eq:#6}.
  1. 5781981178
    \(x^2 - y^2 = (x+y)(x-y)\)
  1. 4319470443
    \(v_2\)
  1. 8173074178
    \(x\)
  1. 5239755033
    \(v_1\)
  1. 1025759423
    \(y\)
  1. 4648451961
    \(v_2^2 - v_1^2 = (v_2 + v_1)(v_2 - v_1)\)
 LHS diff is -pdg0001452**2 + pdg0001464**2 + pdg0002473**2 - pdg0004770**2 RHS diff is -(pdg0001452 - pdg0001464)*(pdg0001452 + pdg0001464) + (pdg0002473 - pdg0004770)*(pdg0002473 + pdg0004770)
14
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 4270680309
    \(\frac{KE_2 - KE_1}{t} = \frac{1}{2} m \frac{\left( v_2^2 - v_1^2 \right)}{t}\)
  1. 4648451961
    \(v_2^2 - v_1^2 = (v_2 + v_1)(v_2 - v_1)\)
  1. 9356924046
    \(\frac{KE_2 - KE_1}{t} = m \frac{v_2 + v_1}{2} \frac{ v_2 - v_1 }{t}\)
 LHS diff is (-pdg0001352 + pdg0001467*(-pdg0002473**2 + pdg0004770**2) + pdg0001955)/pdg0001467 RHS diff is (-2*pdg0001467 + pdg0005156)*(pdg0002473 - pdg0004770)*(pdg0002473 + pdg0004770)/(2*pdg0001467)
15
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 9397152918
    \(v = \frac{v_1 + v_2}{2}\)
 no validation is available for declarations
16
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 2857430695
    \(a = \frac{v_2 - v_1}{t}\)
 no validation is available for declarations
17
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9356924046
    \(\frac{KE_2 - KE_1}{t} = m \frac{v_2 + v_1}{2} \frac{ v_2 - v_1 }{t}\)
  1. 9397152918
    \(v = \frac{v_1 + v_2}{2}\)
  1. 7735737409
    \(\frac{KE_2 - KE_1}{t} = m v \frac{ v_2 - v_1 }{t}\)
 LHS diff is (-pdg0001352 + pdg0001357*pdg0001467 + pdg0001955)/pdg0001467 RHS diff is (pdg0001357*pdg0005156*(pdg0002473 - pdg0004770) + pdg0001467*(pdg0002473 + pdg0004770)/2)/pdg0001467
18
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 7735737409
    \(\frac{KE_2 - KE_1}{t} = m v \frac{ v_2 - v_1 }{t}\)
  1. 2857430695
    \(a = \frac{v_2 - v_1}{t}\)
  1. 4784793837
    \(\frac{KE_2 - KE_1}{t} = m v a\)
 LHS diff is (-pdg0001352 + pdg0001467*pdg0009140 + pdg0001955)/pdg0001467 RHS diff is (-pdg0001357*pdg0001467*pdg0005156*pdg0009140 - pdg0002473 + pdg0004770)/pdg0001467
19
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 5345738321
    \(F = m a\)
 no validation is available for declarations
20
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 4784793837
    \(\frac{KE_2 - KE_1}{t} = m v a\)
  1. 5345738321
    \(F = m a\)
  1. 2186083170
    \(\frac{KE_2 - KE_1}{t} = v F\)
 LHS diff is (-pdg0001352 + pdg0001467*pdg0004202 + pdg0001955)/pdg0001467 RHS diff is -pdg0001357*pdg0004202 + pdg0005156*pdg0009140
21
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 6715248283
    \(PE = -F x\)
 no validation is available for declarations
22
  • 0000111984: change two variables in expression
  • number of inputs: 1; feeds: 4; outputs: 1
  • Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\ref{eq:#5}; yields Eq.~\ref{eq:#6}.
  1. 6715248283
    \(PE = -F x\)
  1. 6941869627
    \(PE\)
  1. 4755369593
    \(x_2\)
  1. 4188639044
    \(x\)
  1. 4522137851
    \(PE_2\)
  1. 2431507955
    \(PE_2 = -F x_2\)
 LHS diff is pdg0004930 - pdg0008849 RHS diff is pdg0004202*(pdg0005467 - pdg0008849)
23
  • 0000111984: change two variables in expression
  • number of inputs: 1; feeds: 4; outputs: 1
  • Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\ref{eq:#5}; yields Eq.~\ref{eq:#6}.
  1. 6715248283
    \(PE = -F x\)
  1. 1010267783
    \(PE\)
  1. 1552869972
    \(x_1\)
  1. 4218009993
    \(x\)
  1. 6749533119
    \(PE_1\)
  1. 4669290568
    \(PE_1 = -F x_1\)
 LHS diff is -pdg0004093 + pdg0004930 RHS diff is pdg0004202*(pdg0003852 - pdg0004093)
24
  • 0000111222: subtract expr 1 from expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Subtract Eq.~\ref{eq:#1} from Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#2}.
  1. 2431507955
    \(PE_2 = -F x_2\)
  1. 4669290568
    \(PE_1 = -F x_1\)
  1. 7734996511
    \(PE_2 - PE_1 = -F ( x_2 - x_1 )\)
 LHS diff is 2*pdg0004093 - 2*pdg0008849 RHS diff is 2*pdg0004202*(-pdg0003852 + pdg0005467)
25
  • 0000111975: divide both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 7734996511
    \(PE_2 - PE_1 = -F ( x_2 - x_1 )\)
  1. 2016063530
    \(t\)
  1. 7267155233
    \(\frac{PE_2 - PE_1}{t} = -F \left( \frac{x_2 - x_1}{t} \right)\)
 valid
26
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 9337785146
    \(v = \frac{x_2 - x_1}{t}\)
 no validation is available for declarations
27
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 7267155233
    \(\frac{PE_2 - PE_1}{t} = -F \left( \frac{x_2 - x_1}{t} \right)\)
  1. 9337785146
    \(v = \frac{x_2 - x_1}{t}\)
  1. 4872970974
    \(\frac{PE_2 - PE_1}{t} = -F v\)
 LHS diff is (pdg0001357*pdg0001467 + pdg0004093 - pdg0008849)/pdg0001467 RHS diff is (pdg0001357*pdg0001467*pdg0004202 - pdg0003852 + pdg0005467)/pdg0001467
28
  • 0000111975: divide both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 5514556106
    \(E_2 - E_1 = (KE_2 - KE_1) + (PE_2 - PE_1)\)
  1. 2081689540
    \(t\)
  1. 2770069250
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} + \frac{(PE_2 - PE_1)}{t}\)
 valid
29
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 2770069250
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} + \frac{(PE_2 - PE_1)}{t}\)
  1. 4872970974
    \(\frac{PE_2 - PE_1}{t} = -F v\)
  1. 3591237106
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} - F v\)
 LHS diff is (-pdg0004093 - pdg0004550 + pdg0008849 + pg5579)/pdg0001467 RHS diff is (-pdg0001352 + pdg0001955)/pdg0001467
30
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 3591237106
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} - F v\)
  1. 2186083170
    \(\frac{KE_2 - KE_1}{t} = v F\)
  1. 1772416655
    \(\frac{E_2 - E_1}{t} = v F - F v\)
 LHS diff is (pdg0001352 - pdg0001955 - pdg0004550 + pdg0005579)/pdg0001467 RHS diff is pdg0001357*pdg0004202
31
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 1772416655
    \(\frac{E_2 - E_1}{t} = v F - F v\)
  1. 1809909100
    \(\frac{E_2 - E_1}{t} = 0\)
 valid
32
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 1809909100
    \(\frac{E_2 - E_1}{t} = 0\)
  1. 5778176146
    \(t\)
  1. 3806977900
    \(E_2 - E_1 = 0\)
 valid
33
  • 0000111530: add X to both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 3806977900
    \(E_2 - E_1 = 0\)
  1. 5960438249
    \(E_1\)
  1. 8558338742
    \(E_2 = E_1\)
 valid
34
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 8558338742
    \(E_2 = E_1\)
 no validation is available for declarations

Symbols used in time invariant force conserves energy

Steps and expressions for time invariant force conserves energy

d3js visualization of steps and expressions in time invariant force conserves energy


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Actions: Edit Derivation

Generate Tex file or PDF file
   xor

Delete Derivation and all associated steps

This does not remove expressions, symbols, and operations.

timing of Neo4j queries:
