Review coefficient of thermal expansion using the equation of state for an ideal gas

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 3464107376
    \(\alpha = \frac{1}{V} \left( \frac{\partial V}{\partial T} \right)_p\)
 no validation is available for declarations
2
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 3497828859
    \(V = \frac{n R T}{P}\)
 no validation is available for declarations
3
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 3464107376
    \(\alpha = \frac{1}{V} \left( \frac{\partial V}{\partial T} \right)_p\)
  2. 3497828859
    \(V = \frac{n R T}{P}\)
  1. 1311403394
    \(\alpha = \frac{1}{V} \frac{nR}{P} \left( \frac{\partial T}{\partial T} \right)_P\)
 LHS diff is -pdg0004686 + pdg0007586 RHS diff is pdg0002834*pdg0008179*(pdg0007343*pdg0007586 - 1)/(pdg0007586*pdg0008134)
4
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 1311403394
    \(\alpha = \frac{1}{V} \frac{nR}{P} \left( \frac{\partial T}{\partial T} \right)_P\)
  1. 5962145508
    \(\alpha = \frac{nR}{VP}\)
 valid
5
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8435841627
    \(P V = n R T\)
 no validation is available for declarations
6
  • 0000111975: divide both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 8435841627
    \(P V = n R T\)
  1. 7924842770
    \(T\)
  1. 2613006036
    \(\frac{PV}{T} = nR\)
 valid
7
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 5962145508
    \(\alpha = \frac{nR}{VP}\)
  2. 2613006036
    \(\frac{PV}{T} = nR\)
  1. 6925244346
    \(\alpha = \frac{PV}{T} \frac{1}{VP}\)
 LHS diff is -pdg0004686 + pdg0007586*pdg0008134/pdg0007343 RHS diff is pdg0002834*pdg0008179 - pdg0007586*pdg0008134/pdg0007343
8
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 6925244346
    \(\alpha = \frac{PV}{T} \frac{1}{VP}\)
  1. 2472653783
    \(\alpha = \frac{1}{T}\)
 LHS diff is 0 RHS diff is (pdg0007586*pdg0008134 - 1)/pdg0007343
9
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 2472653783
    \(\alpha = \frac{1}{T}\)
no validation is available for declarations

Symbols used in coefficient of thermal expansion using the equation of state for an ideal gas

Steps and expressions for coefficient of thermal expansion using the equation of state for an ideal gas

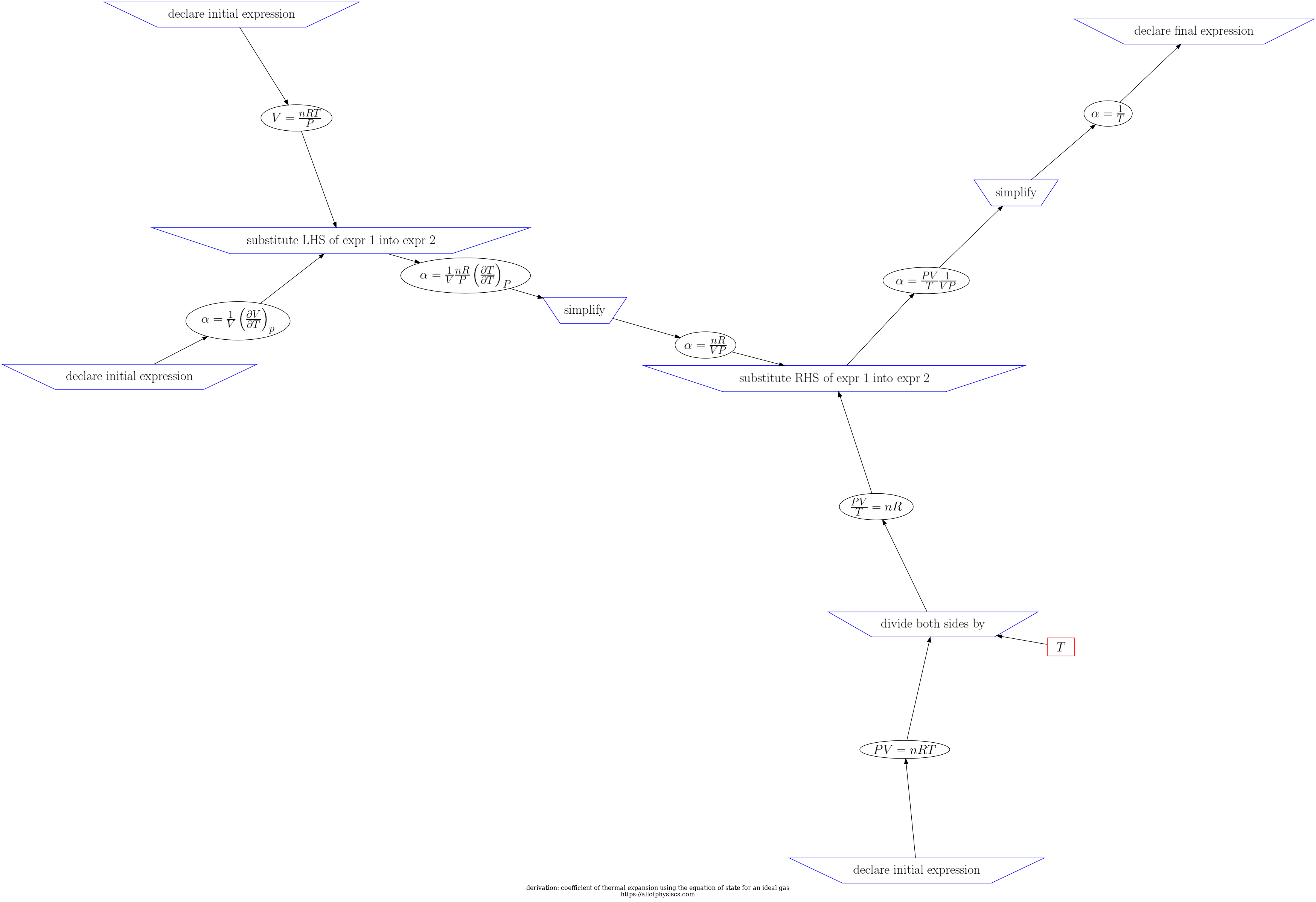

d3js visualization of steps and expressions in coefficient of thermal expansion using the equation of state for an ideal gas
