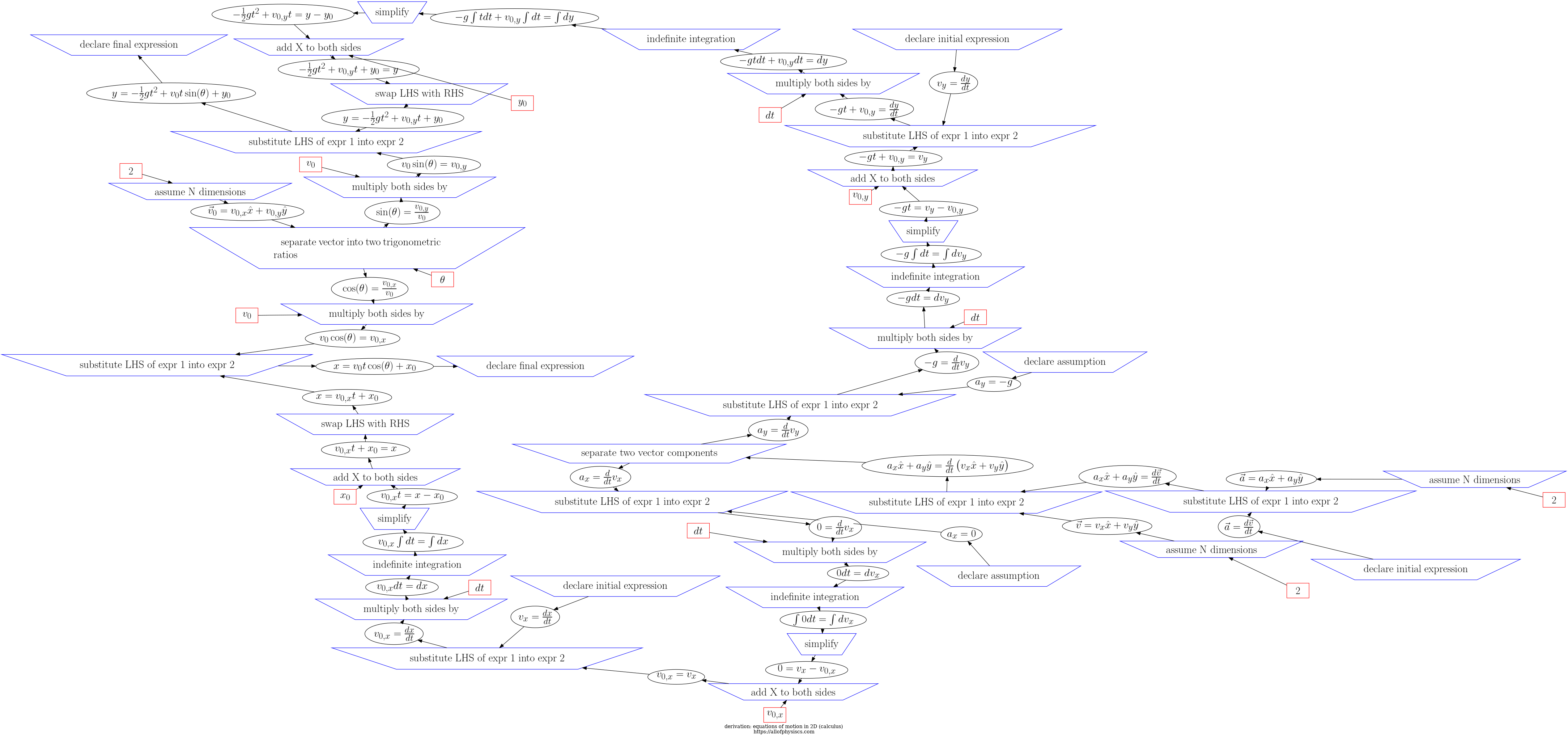

Review equations of motion in 2D (calculus)

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 3169580383
    \(\vec{a} = \frac{d\vec{v}}{dt}\)
 no validation is available for declarations
3
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8602512487
    \(\vec{a} = a_x \hat{x} + a_y \hat{y}\)
  1. 3169580383
    \(\vec{a} = \frac{d\vec{v}}{dt}\)
  1. 4158986868
    \(a_x \hat{x} + a_y \hat{y} = \frac{d\vec{v}}{dt}\)
 Not evaluated due to missing term in SymPy
5
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 4158986868
    \(a_x \hat{x} + a_y \hat{y} = \frac{d\vec{v}}{dt}\)
  1. 5349866551
    \(\vec{v} = v_x \hat{x} + v_y \hat{y}\)
  1. 7729413831
    \(a_x \hat{x} + a_y \hat{y} = \frac{d}{dt} \left(v_x \hat{x} + v_y \hat{y} \right)\)
 Not evaluated due to missing term in SymPy
6
  • 0000111270: separate two vector components
  • number of inputs: 1; feeds: 0; outputs: 2
  • Separate two vector components in Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2} and Eq.~\ref{eq:#3}
  1. 7729413831
    \(a_x \hat{x} + a_y \hat{y} = \frac{d}{dt} \left(v_x \hat{x} + v_y \hat{y} \right)\)
  1. 8228733125
    \(a_y = \frac{d}{dt} v_y\)
  1. 1819663717
    \(a_x = \frac{d}{dt} v_x\)
 recognized infrule but not yet supported
7
  • 0000111104: declare assumption
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an assumption.
  1. 9707028061
    \(a_x = 0\)
 no validation is available for declarations
8
  • 0000111104: declare assumption
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an assumption.
  1. 2741489181
    \(a_y = -g\)
 no validation is available for declarations
9
  • 0000111791: assume N dimensions
  • number of inputs: 0; feeds: 1; outputs: 1
  • Assume $#1$ dimensions; decompose vector to be Eq.~\ref{eq:#2}.
  1. 3270039798
    \(2\)
  1. 8602512487
    \(\vec{a} = a_x \hat{x} + a_y \hat{y}\)
 no validation is available for assumptions
10
  • 0000111791: assume N dimensions
  • number of inputs: 0; feeds: 1; outputs: 1
  • Assume $#1$ dimensions; decompose vector to be Eq.~\ref{eq:#2}.
  1. 8880467139
    \(2\)
  1. 5349866551
    \(\vec{v} = v_x \hat{x} + v_y \hat{y}\)
 no validation is available for assumptions
11
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1819663717
    \(a_x = \frac{d}{dt} v_x\)
  1. 9707028061
    \(a_x = 0\)
  1. 8750379055
    \(0 = \frac{d}{dt} v_x\)
 valid
12
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8228733125
    \(a_y = \frac{d}{dt} v_y\)
  1. 2741489181
    \(a_y = -g\)
  1. 1977955751
    \(-g = \frac{d}{dt} v_y\)
 LHS diff is pdg0001649 RHS diff is -pdg0001649
13
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 1977955751
    \(-g = \frac{d}{dt} v_y\)
  1. 6672141531
    \(dt\)
  1. 1702349646
    \(-g dt = d v_y\)
 LHS arithmetic error. Diff: pdg0001649*(dt - pdg0004711)
14
  • 0000111608: indefinite integration
  • number of inputs: 1; feeds: 0; outputs: 1
  • Indefinite integral of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 1702349646
    \(-g dt = d v_y\)
  1. 8584698994
    \(-g \int dt = \int d v_y\)
 recognized infrule but not yet supported
15
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8584698994
    \(-g \int dt = \int d v_y\)
  1. 9973952056
    \(-g t = v_y - v_{0, y}\)
 LHS diff is -dt*g + pdg0001467*pdg0001649 RHS diff is pdg0005153 + pdg0005674 - pdg0009431
16
  • 0000111530: add X to both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9973952056
    \(-g t = v_y - v_{0, y}\)
  1. 4167526462
    \(v_{0, y}\)
  1. 6572039835
    \(-g t + v_{0, y} = v_y\)
 RHS diff is -pdg0005153 - pdg0009107 + 2*pdg0009431
17
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 7252338326
    \(v_y = \frac{dy}{dt}\)
 no validation is available for declarations
18
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 6572039835
    \(-g t + v_{0, y} = v_y\)
  1. 7252338326
    \(v_y = \frac{dy}{dt}\)
  1. 6204539227
    \(-g t + v_{0, y} = \frac{dy}{dt}\)
 LHS diff is pdg0001467*pdg0006277 + pdg0009107 - pdg0009431 RHS diff is 0
19
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 6204539227
    \(-g t + v_{0, y} = \frac{dy}{dt}\)
  1. 1614343171
    \(dt\)
  1. 8145337879
    \(-g t dt + v_{0, y} dt = dy\)
 LHS arithmetic error. Diff: pdg0001467*pdg0004711*(pdg0001649 - pdg0006277)
20
  • 0000111608: indefinite integration
  • number of inputs: 1; feeds: 0; outputs: 1
  • Indefinite integral of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8145337879
    \(-g t dt + v_{0, y} dt = dy\)
  1. 8808860551
    \(-g \int t dt + v_{0, y} \int dt = \int dy\)
 recognized infrule but not yet supported
21
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8808860551
    \(-g \int t dt + v_{0, y} \int dt = \int dy\)
  1. 2858549874
    \(- \frac{1}{2} g t^2 + v_{0, y} t = y - y_0\)
 LHS diff is 0 RHS diff is pdg0001469
22
  • 0000111530: add X to both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 2858549874
    \(- \frac{1}{2} g t^2 + v_{0, y} t = y - y_0\)
  1. 6098638221
    \(y_0\)
  1. 2461349007
    \(- \frac{1}{2} g t^2 + v_{0, y} t + y_0 = y\)
 valid
23
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 8750379055
    \(0 = \frac{d}{dt} v_x\)
  1. 8717193282
    \(dt\)
  1. 1166310428
    \(0 dt = d v_x\)
 RHS arithmetic error. Diff: -pdg0005005
24
  • 0000111608: indefinite integration
  • number of inputs: 1; feeds: 0; outputs: 1
  • Indefinite integral of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 1166310428
    \(0 dt = d v_x\)
  1. 2366691988
    \(\int 0 dt = \int d v_x\)
 recognized infrule but not yet supported
25
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 2366691988
    \(\int 0 dt = \int d v_x\)
  1. 1676472948
    \(0 = v_x - v_{0, x}\)
 LHS diff is 0 RHS diff is pdg0002958 + pdg0005005 - pdg0005505
26
  • 0000111530: add X to both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1676472948
    \(0 = v_x - v_{0, x}\)
  1. 1439089569
    \(v_{0, x}\)
  1. 6134836751
    \(v_{0, x} = v_x\)
 valid
27
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8460820419
    \(v_x = \frac{dx}{dt}\)
 no validation is available for declarations
28
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8460820419
    \(v_x = \frac{dx}{dt}\)
  1. 6134836751
    \(v_{0, x} = v_x\)
  1. 7455581657
    \(v_{0, x} = \frac{dx}{dt}\)
 valid
29
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 7455581657
    \(v_{0, x} = \frac{dx}{dt}\)
  1. 8607458157
    \(dt\)
  1. 1963253044
    \(v_{0, x} dt = dx\)
 RHS arithmetic error. Diff: -pdg0009199
30
  • 0000111608: indefinite integration
  • number of inputs: 1; feeds: 0; outputs: 1
  • Indefinite integral of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 1963253044
    \(v_{0, x} dt = dx\)
  1. 3676159007
    \(v_{0, x} \int dt = \int dx\)
 recognized infrule but not yet supported
31
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 3676159007
    \(v_{0, x} \int dt = \int dx\)
  1. 9882526611
    \(v_{0, x} t = x - x_0\)
 LHS diff is 0 RHS diff is pdg0001464 + pdg0001572 - pdg0004037
32
  • 0000111530: add X to both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9882526611
    \(v_{0, x} t = x - x_0\)
  1. 3182907803
    \(x_0\)
  1. 8486706976
    \(v_{0, x} t + x_0 = x\)
 valid
33
  • 0000111268: swap LHS with RHS
  • number of inputs: 1; feeds: 0; outputs: 1
  • Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.
  1. 8486706976
    \(v_{0, x} t + x_0 = x\)
  1. 1306360899
    \(x = v_{0, x} t + x_0\)
 valid
34
  • 0000111791: assume N dimensions
  • number of inputs: 0; feeds: 1; outputs: 1
  • Assume $#1$ dimensions; decompose vector to be Eq.~\ref{eq:#2}.
  1. 7049769409
    \(2\)
  1. 9341391925
    \(\vec{v}_0 = v_{0, x} \hat{x} + v_{0, y} \hat{y}\)
 no validation is available for assumptions
35
  • 0000111295: separate vector into two trigonometric ratios
  • number of inputs: 1; feeds: 1; outputs: 2
  • Separate vector in Eq.~\ref{eq:#2} into components related by angle $#1$; yields Eq.~\ref{eq:#3} and Eq.~\ref{eq:#4}.
  1. 9341391925
    \(\vec{v}_0 = v_{0, x} \hat{x} + v_{0, y} \hat{y}\)
  1. 6410818363
    \(\theta\)
  1. 7376526845
    \(\sin(\theta) = \frac{v_{0, y}}{v_0}\)
  1. 7391837535
    \(\cos(\theta) = \frac{v_{0, x}}{v_0}\)
 recognized infrule but not yet supported
36
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 7391837535
    \(\cos(\theta) = \frac{v_{0, x}}{v_0}\)
  1. 5868731041
    \(v_0\)
  1. 6083821265
    \(v_0 \cos(\theta) = v_{0, x}\)
 RHS arithmetic error. Diff: -pdg0002958 + pdg0005153**2/pdg0002958
37
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1306360899
    \(x = v_{0, x} t + x_0\)
  1. 6083821265
    \(v_0 \cos(\theta) = v_{0, x}\)
  1. 5438722682
    \(x = v_0 t \cos(\theta) + x_0\)
 LHS diff is -pdg0004037 + pdg0005153*cos(pdg0001575) RHS diff is -pdg0001467*pdg0005153*cos(pdg0001575) - pdg0001572 + pdg0002958
38
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 5438722682
    \(x = v_0 t \cos(\theta) + x_0\)
 no validation is available for declarations
39
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 7376526845
    \(\sin(\theta) = \frac{v_{0, y}}{v_0}\)
  1. 5620558729
    \(v_0\)
  1. 8949329361
    \(v_0 \sin(\theta) = v_{0, y}\)
 RHS arithmetic error. Diff: pdg0005153**2/pdg0009431 - pdg0009431
40
  • 0000111268: swap LHS with RHS
  • number of inputs: 1; feeds: 0; outputs: 1
  • Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.
  1. 2461349007
    \(- \frac{1}{2} g t^2 + v_{0, y} t + y_0 = y\)
  1. 1405465835
    \(y = - \frac{1}{2} g t^2 + v_{0, y} t + y_0\)
 LHS diff is pdg0001467*(-pdg0009107 + pdg0009431) RHS diff is 0
41
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1405465835
    \(y = - \frac{1}{2} g t^2 + v_{0, y} t + y_0\)
  1. 8949329361
    \(v_0 \sin(\theta) = v_{0, y}\)
  1. 9862900242
    \(y = - \frac{1}{2} g t^2 + v_0 t \sin(\theta) + y_0\)
 LHS diff is pdg0005153*sin(pdg0001575) - pdg0005647 RHS diff is pdg0001467**2*pdg0001649/2 - pdg0001467*pdg0005153*sin(pdg0001575) - pdg0001469 + pdg0009431
42
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 9862900242
    \(y = - \frac{1}{2} g t^2 + v_0 t \sin(\theta) + y_0\)
 no validation is available for declarations

Symbols used in equations of motion in 2D (calculus)

Steps and expressions for equations of motion in 2D (calculus)

d3js visualization of steps and expressions in equations of motion in 2D (calculus)


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Actions: Edit Derivation

Generate Tex file or PDF file
   xor

Delete Derivation and all associated steps

This does not remove expressions, symbols, and operations.

timing of Neo4j queries:
