Review Derivation: Physics Derivation Graph

Return to navigation page or list derivations

Review equations of motion in 1D with constant acceleration - SUVAT (algebra)

abstract:
reference: https://en.wikipedia.org/wiki/Equations_of_motion

step	inference rule	input	feed	output	step validity (as per SymPy)
1	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			3366703541 $a = \frac{v - v_0}{t}$	no validation is available for declarations
2	0000111182: multiply both sides by number of inputs: 1; feeds: 1; outputs: 1 Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	3366703541 $a = \frac{v - v_0}{t}$	7083390553 $t$	4748157455 $a t = v - v_0$	valid
3	0000111530: add X to both sides number of inputs: 1; feeds: 1; outputs: 1 Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	4748157455 $a t = v - v_0$	6417359412 $v_0$	4798787814 $a t + v_0 = v$	valid
4	0000111268: swap LHS with RHS number of inputs: 1; feeds: 0; outputs: 1 Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.	4798787814 $a t + v_0 = v$		3462972452 $v = v_0 + a t$	valid
5	0000111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\ref{eq:#1} is one of the final equations.	3462972452 $v = v_0 + a t$			no validation is available for declarations
6	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			3411994811 $v_{\rm average} = \frac{d}{t}$	no validation is available for declarations
7	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			6175547907 $v_{\rm average} = \frac{v + v_0}{2}$	no validation is available for declarations
8	0000111355: LHS of expr 1 equals LHS of expr 2 number of inputs: 2; feeds: 0; outputs: 1 LHS of Eq.~\ref{eq:#1} is equal to LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	6175547907 $v_{\rm average} = \frac{v + v_0}{2}$ 3411994811 $v_{\rm average} = \frac{d}{t}$		9897284307 $\frac{d}{t} = \frac{v + v_0}{2}$	input diff is 0 diff is (pdg0001467(pdg0001357 + pdg0005153)/2 - pdg0001943)/pdg0001467 diff is (-pdg0001467(pdg0001357 + pdg0005153)/2 + pdg0001943)/pdg0001467
9	0000111182: multiply both sides by number of inputs: 1; feeds: 1; outputs: 1 Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	9897284307 $\frac{d}{t} = \frac{v + v_0}{2}$	8865085668 $t$	8706092970 $d = \left(\frac{v + v_0}{2}\right)t$	valid
10	0000111634: substitute RHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	8706092970 $d = \left(\frac{v + v_0}{2}\right)t$ 3462972452 $v = v_0 + a t$		7011114072 $d = \frac{(v_0 + a t) + v_0}{2} t$	LHS diff is pdg0001357 - pdg0001943 RHS diff is -pdg0001467*2pdg0009140/2 - pdg0001467pdg0005153 + pdg0001467pdg0009140 + pdg0005153
11	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	7011114072 $d = \frac{(v_0 + a t) + v_0}{2} t$		1265150401 $d = \frac{2 v_0 + a t}{2} t$	valid
12	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	1265150401 $d = \frac{2 v_0 + a t}{2} t$		9658195023 $d = v_0 t + \frac{1}{2} a t^2$	valid
13	0000111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\ref{eq:#1} is one of the final equations.	9658195023 $d = v_0 t + \frac{1}{2} a t^2$			no validation is available for declarations
14	0000111483: raise both sides to power number of inputs: 1; feeds: 1; outputs: 1 Raise both sides of Eq.~\ref{eq:#2} to $#1$; yields Eq.~\ref{eq:#3}.	3462972452 $v = v_0 + a t$	5799753649 $2$	7215099603 $v^2 = v_0^2 + 2 a t v_0 + a^2 t^2$	recognized infrule but not yet supported
15	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	7215099603 $v^2 = v_0^2 + 2 a t v_0 + a^2 t^2$		5144263777 $v^2 = v_0^2 + 2 a \left( v_0 t +\frac{1}{2} a t^2 \right)$	Not evaluated due to missing term in SymPy
16	0000111634: substitute RHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	9658195023 $d = v_0 t + \frac{1}{2} a t^2$ 5144263777 $v^2 = v_0^2 + 2 a \left( v_0 t +\frac{1}{2} a t^2 \right)$		7939765107 $v^2 = v_0^2 + 2 a d$	Not evaluated due to missing term in SymPy
17	0000111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\ref{eq:#1} is one of the final equations.	7939765107 $v^2 = v_0^2 + 2 a d$			no validation is available for declarations
18	0000111282: subtract X from both sides number of inputs: 1; feeds: 1; outputs: 1 Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	3462972452 $v = v_0 + a t$	6729698807 $v_0$	9759901995 $v - v_0 = a t$	valid
19	0000111268: swap LHS with RHS number of inputs: 1; feeds: 0; outputs: 1 Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.	9759901995 $v - v_0 = a t$		4748157455 $a t = v - v_0$	valid
20	0000111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	4748157455 $a t = v - v_0$	2242144313 $a$	1967582749 $t = \frac{v - v_0}{a}$	valid
21	0000111634: substitute RHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	8706092970 $d = \left(\frac{v + v_0}{2}\right)t$ 1967582749 $t = \frac{v - v_0}{a}$		5733721198 $d = \frac{1}{2} (v + v_0) \left( \frac{v - v_0}{a} \right)$	LHS diff is pdg0001467 - pdg0001943 RHS diff is (pdg0001357 - pdg0005153 - (pdg0001357 - pdg0005153)*(pdg0001357 + pdg0005153)/2)/pdg0009140
22	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	5733721198 $d = \frac{1}{2} (v + v_0) \left( \frac{v - v_0}{a} \right)$		5611024898 $d = \frac{1}{2 a} (v^2 - v_0^2)$	valid
23	0000111182: multiply both sides by number of inputs: 1; feeds: 1; outputs: 1 Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	5611024898 $d = \frac{1}{2 a} (v^2 - v_0^2)$	5542390646 $2 a$	8269198922 $2 a d = v^2 - v_0^2$	valid
24	0000111530: add X to both sides number of inputs: 1; feeds: 1; outputs: 1 Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	8269198922 $2 a d = v^2 - v_0^2$	9070454719 $v_0^2$	4948763856 $2 a d + v_0^2 = v^2$	valid
25	0000111268: swap LHS with RHS number of inputs: 1; feeds: 0; outputs: 1 Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.	4948763856 $2 a d + v_0^2 = v^2$		7939765107 $v^2 = v_0^2 + 2 a d$	valid
26	0000111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\ref{eq:#1} is one of the final equations.	8706092970 $d = \left(\frac{v + v_0}{2}\right)t$			no validation is available for declarations
27	0000111282: subtract X from both sides number of inputs: 1; feeds: 1; outputs: 1 Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	3462972452 $v = v_0 + a t$	9645178657 $a t$	6457044853 $v - a t = v_0$	valid
28	0000111634: substitute RHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	9658195023 $d = v_0 t + \frac{1}{2} a t^2$ 6457044853 $v - a t = v_0$		1259826355 $d = (v - a t) t + \frac{1}{2} a t^2$	LHS diff is pdg0001357 - pdg0001467pdg0009140 - pdg0001943 RHS diff is -pdg0001357pdg0001467 + pdg0001467*2pdg0009140/2 + pdg0005153
29	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	1259826355 $d = (v - a t) t + \frac{1}{2} a t^2$		4580545876 $d = v t - a t^2 + \frac{1}{2} a t^2$	valid
30	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	4580545876 $d = v t - a t^2 + \frac{1}{2} a t^2$		6421241247 $d = v t - \frac{1}{2} a t^2$	valid
31	0000111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\ref{eq:#1} is one of the final equations.	6421241247 $d = v t - \frac{1}{2} a t^2$			no validation is available for declarations

Symbols used in equations of motion in 1D with constant acceleration - SUVAT (algebra)

0000009140: $ a $
0000001943: $ d $
0000001467: $ t $
0000001357: $ v $
0000005153: $ v_0 $
0000006709: $ v_{\rm average} $

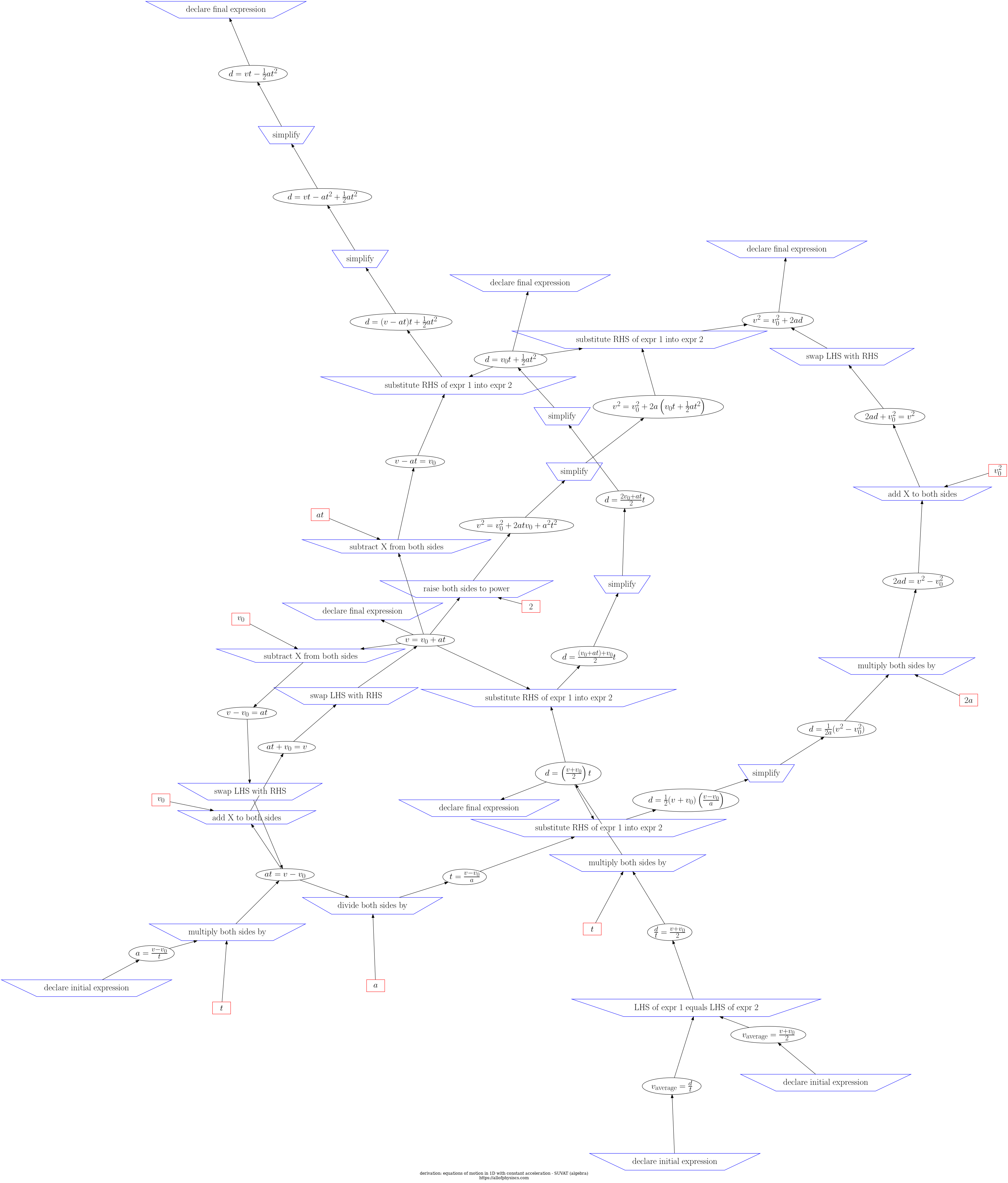

d3js visualization of steps and expressions in equations of motion in 1D with constant acceleration - SUVAT (algebra)

Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Actions: Edit Derivation

Generate Tex file or PDF file

Delete Derivation and all associated steps

This does not remove expressions, symbols, and operations.
