Review speed of Earth around Sun

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 5426308937
    \(v = \frac{d}{t}\)
 no validation is available for declarations
2
  • 0000111886: change variable X to Y
  • number of inputs: 1; feeds: 2; outputs: 1
  • Change variable $#1$ to $#2$ in Eq.~\ref{eq:#3}; yields Eq.~\ref{eq:#4}.
  1. 5426308937
    \(v = \frac{d}{t}\)
  1. 7476820482
    \(C\)
  2. 1277713901
    \(d\)
  1. 6946088325
    \(v = \frac{C}{t}\)
 LHS diff is 0 RHS diff is (pdg0001943 - pdg0003034)/pdg0001467
Note about step 3: circumference of a circle
3
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 6785303857
    \(C = 2 \pi r\)
 no validation is available for declarations
4
  • 0000111984: change two variables in expression
  • number of inputs: 1; feeds: 4; outputs: 1
  • Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\ref{eq:#5}; yields Eq.~\ref{eq:#6}.
  1. 6785303857
    \(C = 2 \pi r\)
  1. 4202292449
    \(r_{\rm Earth\ orbit}\)
  2. 2346150725
    \(r\)
  3. 6239815585
    \(C_{\rm Earth\ orbit}\)
  4. 9306496484
    \(C\)
  1. 6348260313
    \(C_{\rm Earth\ orbit} = 2 \pi r_{\rm Earth\ orbit}\)
 LHS diff is -pdg0001534 + pdg0003034 RHS diff is 2*pdg0003141*(pdg0002530 - pdg0006081)
5
  • 0000111236: change three variables in expression
  • number of inputs: 1; feeds: 6; outputs: 1
  • Change of variable $#1$ to $#2$ and $#3$ to $#4$ and $#5$ to $#6$ in Eq.~\ref{eq:#7}; yields Eq.~\ref{eq:#8}.
  1. 6946088325
    \(v = \frac{C}{t}\)
  1. 4470433702
    \(t_{\rm Earth\ orbit}\)
  2. 8135396036
    \(t\)
  3. 9601500174
    \(v_{\rm Earth\ orbit}\)
  4. 9753878784
    \(v\)
  5. 7708501762
    \(C_{\rm Earth\ orbit}\)
  6. 4057686137
    \(C\)
  1. 3046191961
    \(v_{\rm Earth\ orbit} = \frac{C_{\rm Earth\ orbit}}{t_{\rm Earth\ orbit}}\)
 LHS diff is pdg0001357 - pdg0007427 RHS diff is -pdg0001534/pdg0005344 + pdg0003034/pdg0001467
6
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 3046191961
    \(v_{\rm Earth\ orbit} = \frac{C_{\rm Earth\ orbit}}{t_{\rm Earth\ orbit}}\)
  2. 6348260313
    \(C_{\rm Earth\ orbit} = 2 \pi r_{\rm Earth\ orbit}\)
  1. 3080027960
    \(v_{\rm Earth\ orbit} = \frac{2 \pi r_{\rm Earth\ orbit}}{t_{\rm Earth\ orbit}}\)
 LHS diff is pdg0001534 - pdg0007427 RHS diff is 2*pdg0003141*pdg0006081*(pdg0005344 - 1)/pdg0005344
7
  • 0000111104: declare assumption
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an assumption.
  1. 7175416299
    \(t_{\rm Earth\ orbit} = 1 {\rm year}\)
 no validation is available for declarations
8
  • 0000111646: multiply RHS by unity
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply RHS of Eq.~\ref{eq:#2} by 1, which in this case is $#1$; yields Eq.~\ref{eq:#3}
  1. 7175416299
    \(t_{\rm Earth\ orbit} = 1 {\rm year}\)
  1. 3219318145
    \(\frac{365 {\rm days}}{1 {\rm year}} \frac{24 {\rm hours}}{1 {\rm day}} \frac{60 {\rm minutes}}{1 {\rm hour}} \frac{60 {\rm seconds}}{1 {\rm minute}}\)
  1. 8721295221
    \(t_{\rm Earth\ orbit} = 3.16 10^7 {\rm seconds}\)
 feed diff is 364 LHS diff is 0 RHS diff is 362
9
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 3080027960
    \(v_{\rm Earth\ orbit} = \frac{2 \pi r_{\rm Earth\ orbit}}{t_{\rm Earth\ orbit}}\)
  2. 8721295221
    \(t_{\rm Earth\ orbit} = 3.16 10^7 {\rm seconds}\)
  1. 4593428198
    \(v_{\rm Earth\ orbit} = \frac{2 \pi r_{\rm Earth\ orbit}}{3.16\ 10^7 {\rm seconds}}\)
 LHS diff is pdg0005344 - pdg0007427 RHS diff is -0.632911392405063*pdg0003141*pdg0006081 + 3
10
  • 0000111104: declare assumption
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an assumption.
  1. 3472836147
    \(r_{\rm Earth\ orbit} = 1.496\ 10^8 {\rm km}\)
 no validation is available for declarations
11
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 4593428198
    \(v_{\rm Earth\ orbit} = \frac{2 \pi r_{\rm Earth\ orbit}}{3.16\ 10^7 {\rm seconds}}\)
  2. 3472836147
    \(r_{\rm Earth\ orbit} = 1.496\ 10^8 {\rm km}\)
  1. 6998364753
    \(v_{\rm Earth\ orbit} = \frac{2 \pi \left( 1.496\ 10^8 {\rm km} \right)}{3.16\ 10^7 {\rm seconds}}\)
 LHS diff is pdg0006081 - pdg0007427 RHS diff is 1.496 - 0.632911392405063*pdg0003141
12
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 6998364753
    \(v_{\rm Earth\ orbit} = \frac{2 \pi \left( 1.496\ 10^8 {\rm km} \right)}{3.16\ 10^7 {\rm seconds}}\)
  1. 4180845508
    \(v_{\rm Earth\ orbit} = 29.8 \frac{{\rm km}}{{\rm sec}}\)
 LHS diff is 0 RHS diff is 0.632911392405063*pdg0003141 - 29.8
13
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 4180845508
    \(v_{\rm Earth\ orbit} = 29.8 \frac{{\rm km}}{{\rm sec}}\)
no validation is available for declarations

Symbols used in speed of Earth around Sun

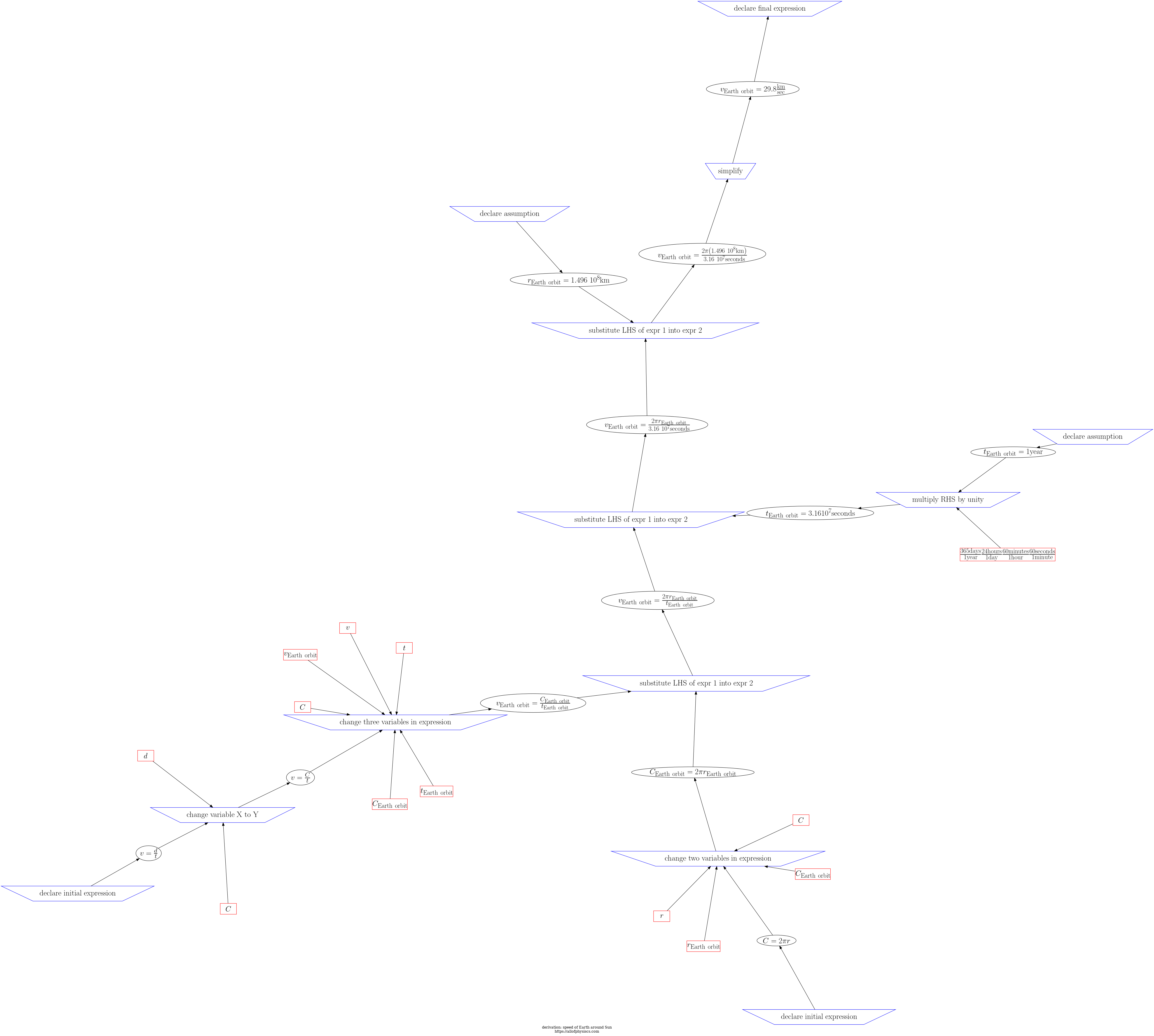

Steps and expressions for speed of Earth around Sun

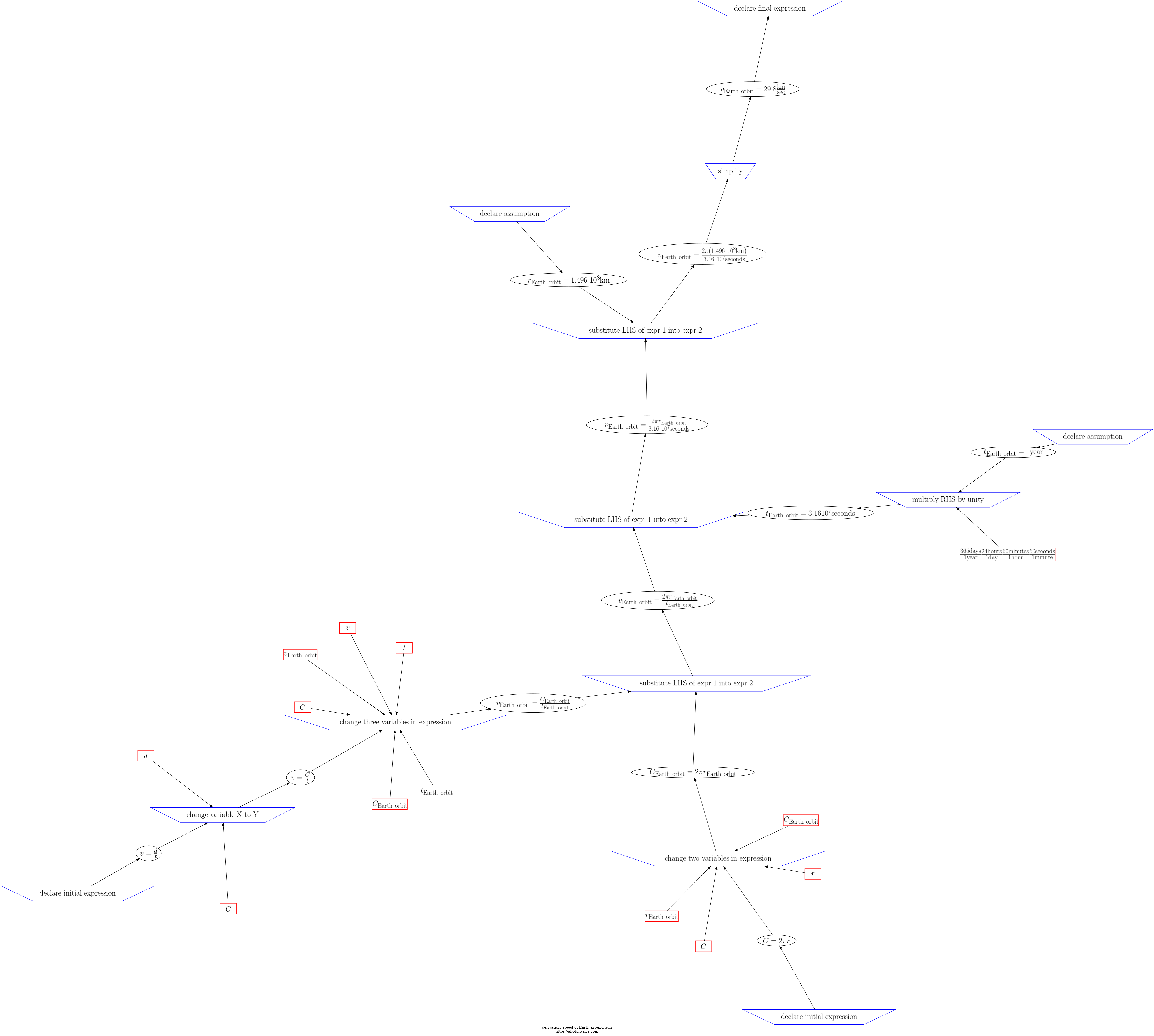

d3js visualization of steps and expressions in speed of Earth around Sun


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.
