Review upper limit on velocity in condensed matter

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 4560648264
    \(v = \sqrt{ \frac{K + (4/3) G}{\rho} }\)
 no validation is available for declarations
2
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 9376481176
    \(K = f \frac{E}{a^3}\)
 no validation is available for declarations
3
  • 0000111782: drop non-dominant term
  • number of inputs: 1; feeds: 1; outputs: 1
  • Based on the assumption $#1$, drop non-dominant term in Eq.~\ref{#2}; yeilds Eq.~\ref{#3}
  1. 4560648264
    \(v = \sqrt{ \frac{K + (4/3) G}{\rho} }\)
  1. 9674924517
    \(K >> G\)
  1. 6504442697
    \(v = \sqrt{ \frac{K}{\rho} }\)
 recognized infrule but not yet supported
4
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 6504442697
    \(v = \sqrt{ \frac{K}{\rho} }\)
  1. 9376481176
    \(K = f \frac{E}{a^3}\)
  1. 8090924099
    \(v = \sqrt{ \left( f\frac{E}{a^3} \right) \frac{1}{\rho} }\)
 LHS diff is K - pdg0002077 RHS diff is pdg0002241*pdg0006235/pdg0005854**3 - sqrt(pdg0002241*pdg0006235/(pdg0003935*pdg0005854**3))
5
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8908736791
    \(\rho = \frac{m}{a^3}\)
 no validation is available for declarations
6
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 8908736791
    \(\rho = \frac{m}{a^3}\)
  1. 2397692197
    \(a^3\)
  1. 8688588981
    \(a^3 \rho = m\)
 valid
7
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8090924099
    \(v = \sqrt{ \left( f\frac{E}{a^3} \right) \frac{1}{\rho} }\)
  1. 8688588981
    \(a^3 \rho = m\)
  1. 7837519722
    \(v = \sqrt{f} \sqrt{\frac{E}{m}}\)
 LHS diff is -pdg0002077 + pdg0003935*pdg0005854**3 RHS diff is -sqrt(pdg0006235)*sqrt(pdg0002241/pdg0009863) + pdg0009863
8
  • 0000111782: drop non-dominant term
  • number of inputs: 1; feeds: 1; outputs: 1
  • Based on the assumption $#1$, drop non-dominant term in Eq.~\ref{#2}; yeilds Eq.~\ref{#3}
  1. 7837519722
    \(v = \sqrt{f} \sqrt{\frac{E}{m}}\)
  1. 3685779219
    \(\sqrt{f} \approx 2\)
  1. 9854442418
    \(v = \sqrt{\frac{E}{m}}\)
 recognized infrule but not yet supported
9
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 1556389363
    \(E_{\rm Rydberg} = \frac{ m_e e^4 }{ 32 \pi^2 \epsilon_0^2 \hbar^2}\)
 no validation is available for declarations
10
  • 0000111104: declare assumption
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an assumption.
  1. 4107032818
    \(E_{\rm Rydberg} = E\)
 no validation is available for declarations
11
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8106885760
    \(\alpha = \frac{1}{4 \pi \epsilon_0} \frac{e^2}{\hbar c}\)
 no validation is available for declarations
12
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 8106885760
    \(\alpha = \frac{1}{4 \pi \epsilon_0} \frac{e^2}{\hbar c}\)
  1. 8857931498
    \(c\)
  1. 5838268428
    \(\alpha c = \frac{1}{4 \pi \epsilon_0} \frac{e^2}{\hbar}\)
 valid
13
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1556389363
    \(E_{\rm Rydberg} = \frac{ m_e e^4 }{ 32 \pi^2 \epsilon_0^2 \hbar^2}\)
  1. 4107032818
    \(E_{\rm Rydberg} = E\)
  1. 3291685884
    \(E = \frac{ m_e e^4 }{ 32 \pi^2 \epsilon_0^2 \hbar^2}\)
 LHS diff is -pdg0002241 + pdg0001999**4*pdg0002515/(32*pdg0001054**2*pdg0003141**2*pdg0007940**2) RHS diff is pdg0002241 - pdg0001999**4*pdg0002515/(32*pdg0001054**2*pdg0003141**2*pdg0007940**2)
14
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9854442418
    \(v = \sqrt{\frac{E}{m}}\)
  1. 3291685884
    \(E = \frac{ m_e e^4 }{ 32 \pi^2 \epsilon_0^2 \hbar^2}\)
  1. 3935058307
    \(v = \sqrt{ \frac{m_e}{m} \frac{e^4}{32 \pi^2 \epsilon_0^2 \hbar^2} }\)
 LHS diff is -pdg0002077 + pdg0002241 RHS diff is -sqrt(2)*sqrt(pdg0001999**4*pdg0002515/(pdg0001054**2*pdg0003141**2*pdg0007940**2*pdg0009863))/8 + pdg0001999**4*pdg0002515/(32*pdg0001054**2*pdg0003141**2*pdg0007940**2)
15
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 3935058307
    \(v = \sqrt{ \frac{m_e}{m} \frac{e^4}{32 \pi^2 \epsilon_0^2 \hbar^2} }\)
  1. 9640720571
    \(v = \frac{e^2}{4 \pi \epsilon_0 \hbar} \sqrt{\frac{m_e}{2 m}}\)
 LHS diff is 0 RHS diff is sqrt(2)*(pdg0001054*pdg0003141*pdg0007940*sqrt(pdg0001999**4*pdg0002515/(pdg0001054**2*pdg0003141**2*pdg0007940**2*pdg0009863)) - pdg0001999**2*sqrt(pdg0002515/pdg0009863))/(8*pdg0001054*pdg0003141*pdg0007940)
16
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9640720571
    \(v = \frac{e^2}{4 \pi \epsilon_0 \hbar} \sqrt{\frac{m_e}{2 m}}\)
  1. 5838268428
    \(\alpha c = \frac{1}{4 \pi \epsilon_0} \frac{e^2}{\hbar}\)
  1. 5789289057
    \(v = \alpha c \sqrt{ \frac{m_e}{2 m} }\)
 LHS diff is pdg0001370*pdg0004567 - pdg0002077 RHS diff is -sqrt(2)*pdg0001370*pdg0004567*sqrt(pdg0002515/pdg0009863)/2 + pdg0001999**2/(4*pdg0001054*pdg0003141*pdg0007940)
17
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 5646314683
    \(m = A m_p\)
 no validation is available for declarations
18
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 5789289057
    \(v = \alpha c \sqrt{ \frac{m_e}{2 m} }\)
  1. 5646314683
    \(m = A m_p\)
  1. 2897612567
    \(v = \alpha c \sqrt{ \frac{m_e}{A m_p} }\)
 LHS diff is -pdg0002077 + pdg0009863 RHS diff is -pdg0001370*pdg0004567*sqrt(pdg0002515/(pdg0003285*pdg0005916)) + pdg0003285*pdg0005916
19
  • 0000111773: maximum of expression
  • number of inputs: 1; feeds: 1; outputs: 1
  • The maximum of Eq.~\ref{eq:#2} with respect to $#1$ is Eq.~\ref{eq:#3}
  1. 2897612567
    \(v = \alpha c \sqrt{ \frac{m_e}{A m_p} }\)
  1. 6259833695
    \(A\)
  1. 7701249282
    \(v_u = \alpha c \sqrt{ \frac{m_e}{m_p} }\)
 recognized infrule but not yet supported
20
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 7701249282
    \(v_u = \alpha c \sqrt{ \frac{m_e}{m_p} }\)
 no validation is available for declarations

Symbols used in upper limit on velocity in condensed matter

Steps and expressions for upper limit on velocity in condensed matter

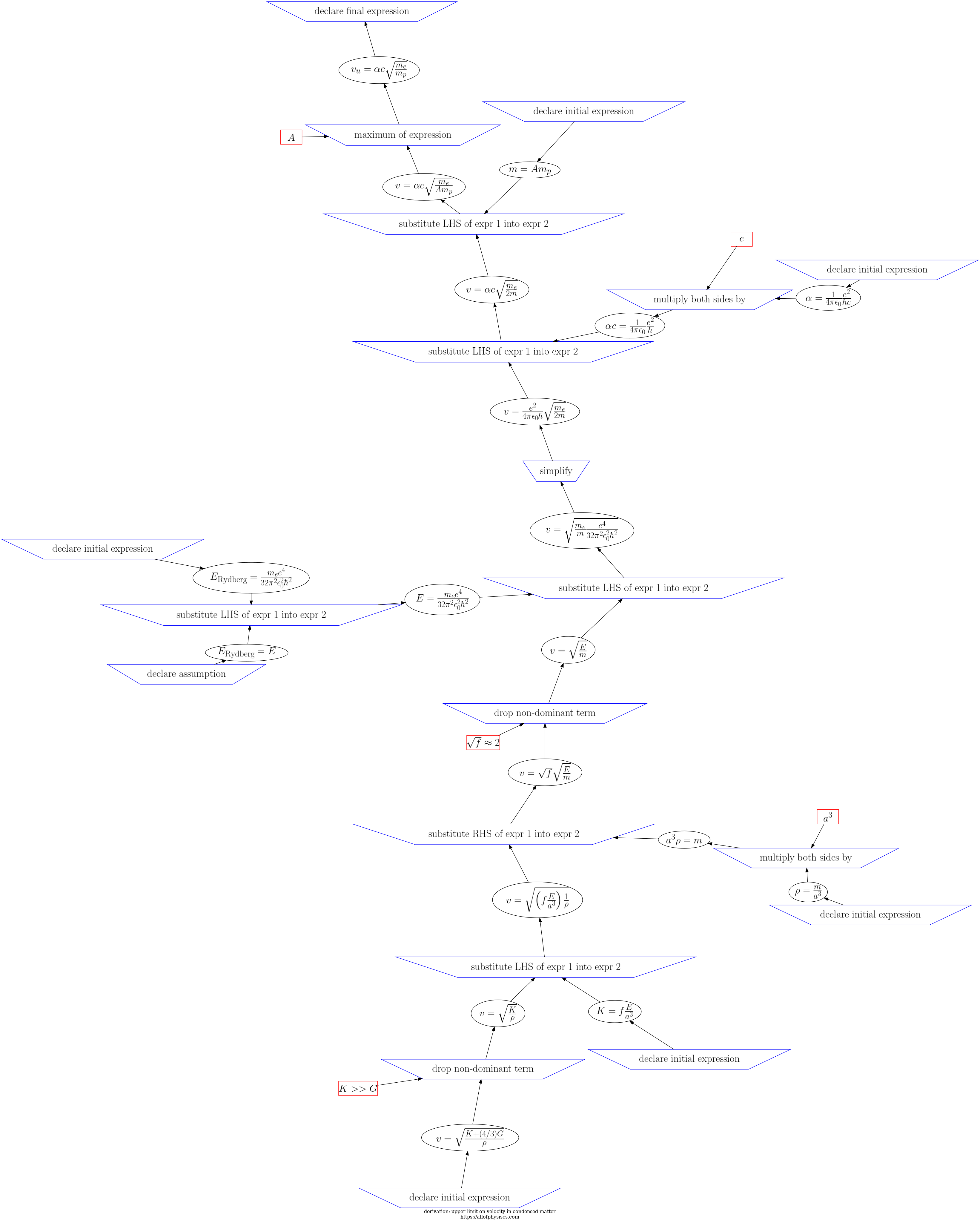

d3js visualization of steps and expressions in upper limit on velocity in condensed matter
