Review hyperbolic trigonometric identities

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 6404535647
    \(\cosh x = \frac{\exp(x) + \exp(-x)}{2}\)
 no validation is available for declarations
2
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 1038566242
    \(\sinh x = \frac{\exp(x) - \exp(-x)}{2}\)
 no validation is available for declarations
3
  • 0000111253: multiply expr 1 by expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Multiply Eq.~\ref{eq:#1} by Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1038566242
    \(\sinh x = \frac{\exp(x) - \exp(-x)}{2}\)
  1. 1038566242
    \(\sinh x = \frac{\exp(x) - \exp(-x)}{2}\)
  1. 6031385191
    \(\sinh^2 x = \left(\frac{\exp(x) - \exp(-x)}{2}\right)\left(\frac{\exp(x) - \exp(-x)}{2}\right)\)
 valid
4
  • 0000111253: multiply expr 1 by expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Multiply Eq.~\ref{eq:#1} by Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 6404535647
    \(\cosh x = \frac{\exp(x) + \exp(-x)}{2}\)
  1. 6404535647
    \(\cosh x = \frac{\exp(x) + \exp(-x)}{2}\)
  1. 8532702080
    \(\cosh^2 x = \left(\frac{\exp(x) + \exp(-x)}{2}\right)\left(\frac{\exp(x) + \exp(-x)}{2}\right)\)
 valid
5
  • 0000111222: subtract expr 1 from expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Subtract Eq.~\ref{eq:#1} from Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#2}.
  1. 8532702080
    \(\cosh^2 x = \left(\frac{\exp(x) + \exp(-x)}{2}\right)\left(\frac{\exp(x) + \exp(-x)}{2}\right)\)
  1. 6031385191
    \(\sinh^2 x = \left(\frac{\exp(x) - \exp(-x)}{2}\right)\left(\frac{\exp(x) - \exp(-x)}{2}\right)\)
  1. 8563535636
    \(\cosh^2 x - \sinh^2 x = \left(\frac{\exp(x) + \exp(-x)}{2}\right)\left(\frac{\exp(x) + \exp(-x)}{2}\right) - \left(\frac{\exp(x) - \exp(-x)}{2}\right)\left(\frac{\exp(x) - \exp(-x)}{2}\right)\)
 LHS diff is -2 RHS diff is -2
6
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8563535636
    \(\cosh^2 x - \sinh^2 x = \left(\frac{\exp(x) + \exp(-x)}{2}\right)\left(\frac{\exp(x) + \exp(-x)}{2}\right) - \left(\frac{\exp(x) - \exp(-x)}{2}\right)\left(\frac{\exp(x) - \exp(-x)}{2}\right)\)
  1. 2762326680
    \(\cosh^2 x - \sinh^2 x = \frac{1}{4}\left( \exp(2x)+1+1+\exp(-2x) - \left(\exp(2x)-1-1+\exp(-2x)\right) \right)\)
 valid
7
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 2762326680
    \(\cosh^2 x - \sinh^2 x = \frac{1}{4}\left( \exp(2x)+1+1+\exp(-2x) - \left(\exp(2x)-1-1+\exp(-2x)\right) \right)\)
  1. 9413609246
    \(\cosh^2 x - \sinh^2 x = 1\)
 valid
8
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 9413609246
    \(\cosh^2 x - \sinh^2 x = 1\)
 no validation is available for declarations
9
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8747785338
    \(\cos(i x) = \cosh(x)\)
 no validation is available for declarations
10
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8418527415
    \(\sin(i x) = i \sinh(x)\)
 no validation is available for declarations
11
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 2103023049
    \(\sin(x) = \frac{1}{2i}\left(\exp(i x)-\exp(-i x) \right)\)
 no validation is available for declarations
12
  • 0000111886: change variable X to Y
  • number of inputs: 1; feeds: 2; outputs: 1
  • Change variable $#1$ to $#2$ in Eq.~\ref{eq:#3}; yields Eq.~\ref{eq:#4}.
  1. 2103023049
    \(\sin(x) = \frac{1}{2i}\left(\exp(i x)-\exp(-i x) \right)\)
  1. 7159989263
    \(i x\)
  1. 6976493023
    \(x\)
  1. 4878728014
    \(\sin(i x) = \frac{1}{2i}\left(\exp(-x) - \exp(x) \right)\)
 LHS diff is sin(pdg0001464) - sin(pdg0001464*pdg0004621) RHS diff is 2*sinh(pdg0001464)/pdg0004621
13
  • 0000111355: LHS of expr 1 equals LHS of expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • LHS of Eq.~\ref{eq:#1} is equal to LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8418527415
    \(\sin(i x) = i \sinh(x)\)
  1. 4878728014
    \(\sin(i x) = \frac{1}{2i}\left(\exp(-x) - \exp(x) \right)\)
  1. 5323719091
    \(i \sinh x = \frac{1}{2i} \left( \exp(-x) - \exp(x) \right)\)
 valid
14
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 5323719091
    \(i \sinh x = \frac{1}{2i} \left( \exp(-x) - \exp(x) \right)\)
  1. 9885190237
    \(i\)
  1. 1038566242
    \(\sinh x = \frac{\exp(x) - \exp(-x)}{2}\)
 LHS arithmetic error. Diff: (pdg0004621**2 - 1)*sinh(pdg0001464)
15
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 4585932229
    \(\cos(x) = \frac{1}{2}\left(\exp(i x)+\exp(-i x) \right)\)
 no validation is available for declarations
16
  • 0000111886: change variable X to Y
  • number of inputs: 1; feeds: 2; outputs: 1
  • Change variable $#1$ to $#2$ in Eq.~\ref{eq:#3}; yields Eq.~\ref{eq:#4}.
  1. 4585932229
    \(\cos(x) = \frac{1}{2}\left(\exp(i x)+\exp(-i x) \right)\)
  1. 1716984328
    \(i x\)
  1. 7453225570
    \(x\)
  1. 8651044341
    \(\cos(i x) = \frac{1}{2} \left( \exp(-x) + \exp(x) \right)\)
 LHS diff is cos(pdg0001464) - cos(pdg0001464*pdg0004621) RHS diff is 0
17
  • 0000111355: LHS of expr 1 equals LHS of expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • LHS of Eq.~\ref{eq:#1} is equal to LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8651044341
    \(\cos(i x) = \frac{1}{2} \left( \exp(-x) + \exp(x) \right)\)
  1. 8747785338
    \(\cos(i x) = \cosh(x)\)
  1. 6404535647
    \(\cosh x = \frac{\exp(x) + \exp(-x)}{2}\)
 valid
18
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 7731226616
    \({\rm sech}\ x = \frac{1}{\cosh x}\)
 no validation is available for declarations
19
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 7731226616
    \({\rm sech}\ x = \frac{1}{\cosh x}\)
  1. 6404535647
    \(\cosh x = \frac{\exp(x) + \exp(-x)}{2}\)
  1. 4166155526
    \({\rm sech}\ x = \frac{2}{\exp(x)+\exp(-x)}\)
 LHS diff is cosh(pdg0001464) - sech(pdg0001464) RHS diff is (exp(4*pdg0001464) - 2*exp(2*pdg0001464) + 1)*exp(-pdg0001464)/(2*(exp(2*pdg0001464) + 1))
20
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 4872163189
    \(\tanh(x) = \frac{\sinh(x)}{\cosh(x)}\)
 no validation is available for declarations
21
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 4872163189
    \(\tanh(x) = \frac{\sinh(x)}{\cosh(x)}\)
  1. 1038566242
    \(\sinh x = \frac{\exp(x) - \exp(-x)}{2}\)
  1. 2902772962
    \(\tanh(x) = \frac{\frac{1}{2}\left( \exp(x)-\exp(-x) \right)}{\cosh(x)}\)
 LHS diff is sinh(pdg0001464) - tanh(pdg0001464) RHS diff is (exp(2*pdg0001464) - exp(2*pdg0001464)/cosh(pdg0001464) - 1 + 1/cosh(pdg0001464))*exp(-pdg0001464)/2
22
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 2902772962
    \(\tanh(x) = \frac{\frac{1}{2}\left( \exp(x)-\exp(-x) \right)}{\cosh(x)}\)
  1. 6404535647
    \(\cosh x = \frac{\exp(x) + \exp(-x)}{2}\)
  1. 5349669879
    \(\tanh(x) = \frac{ \exp(x)-\exp(-x)}{\exp(x)+\exp(-x)}\)
 LHS diff is cosh(pdg0001464) - tanh(pdg0001464) RHS diff is (exp(4*pdg0001464)/2 - exp(3*pdg0001464) + exp(2*pdg0001464) + exp(pdg0001464) + 1/2)*exp(-pdg0001464)/(exp(2*pdg0001464) + 1)
23
  • 0000111253: multiply expr 1 by expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Multiply Eq.~\ref{eq:#1} by Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 5349669879
    \(\tanh(x) = \frac{ \exp(x)-\exp(-x)}{\exp(x)+\exp(-x)}\)
  1. 5349669879
    \(\tanh(x) = \frac{ \exp(x)-\exp(-x)}{\exp(x)+\exp(-x)}\)
  1. 2121790783
    \(\tanh^2(x) = \frac{ \left(\exp(x)-\exp(-x)\right)^2}{\left(\exp(x)+\exp(-x)\right)^2}\)
 valid
24
  • 0000111253: multiply expr 1 by expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Multiply Eq.~\ref{eq:#1} by Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 4166155526
    \({\rm sech}\ x = \frac{2}{\exp(x)+\exp(-x)}\)
  1. 4166155526
    \({\rm sech}\ x = \frac{2}{\exp(x)+\exp(-x)}\)
  1. 3868998312
    \({\rm sech}^2\ x = \frac{4}{\left(\exp(x)+\exp(-x)\right)^2}\)
 valid
25
  • 0000111980: add expr 1 to expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Add Eq.~\ref{eq:#1} to Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#2}.
  1. 2121790783
    \(\tanh^2(x) = \frac{ \left(\exp(x)-\exp(-x)\right)^2}{\left(\exp(x)+\exp(-x)\right)^2}\)
  1. 3868998312
    \({\rm sech}^2\ x = \frac{4}{\left(\exp(x)+\exp(-x)\right)^2}\)
  1. 1128605625
    \({\rm sech}^2\ x + \tanh^2(x) = \frac{4}{\left(\exp(x)+\exp(-x)\right)^2} + \frac{\left(\exp(x)-\exp(-x)\right)^2}{\left(\exp(x)+\exp(-x)\right)^2}\)
 valid
26
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 1128605625
    \({\rm sech}^2\ x + \tanh^2(x) = \frac{4}{\left(\exp(x)+\exp(-x)\right)^2} + \frac{\left(\exp(x)-\exp(-x)\right)^2}{\left(\exp(x)+\exp(-x)\right)^2}\)
  1. 4830221561
    \({\rm sech}^2\ x + \tanh^2(x) = \frac{4+\left(\exp(2x)-1-1+\exp(-2x)\right)}{\left(\exp(x)+\exp(-x)\right)^2}\)
 valid
27
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 4830221561
    \({\rm sech}^2\ x + \tanh^2(x) = \frac{4+\left(\exp(2x)-1-1+\exp(-2x)\right)}{\left(\exp(x)+\exp(-x)\right)^2}\)
  1. 5866629429
    \({\rm sech}^2\ x + \tanh^2(x) = 1\)
 valid
28
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 5866629429
    \({\rm sech}^2\ x + \tanh^2(x) = 1\)
 no validation is available for declarations

Symbols used in hyperbolic trigonometric identities

Steps and expressions for hyperbolic trigonometric identities

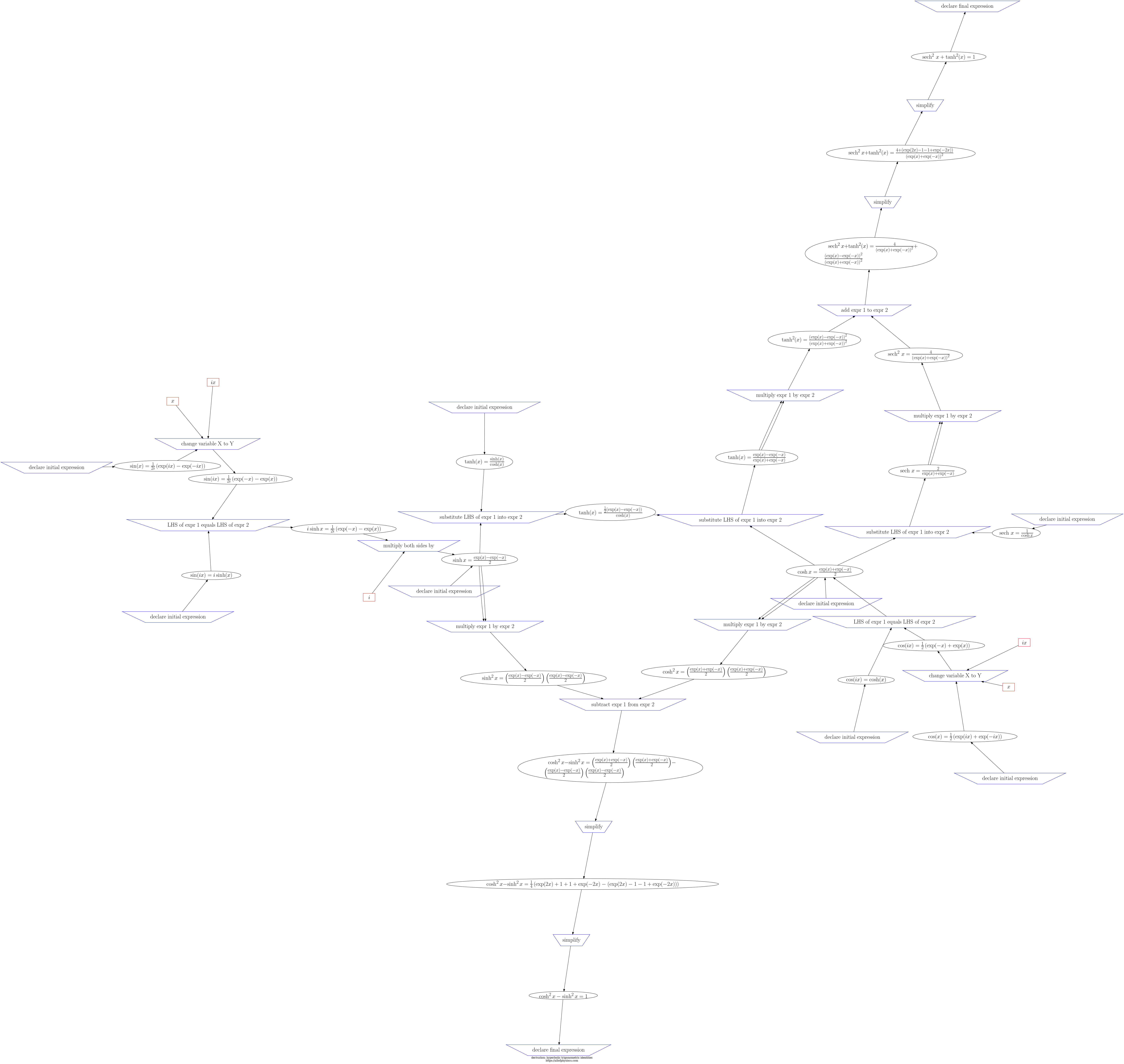

d3js visualization of steps and expressions in hyperbolic trigonometric identities


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.
