review derivation: time invariant force conserves energy

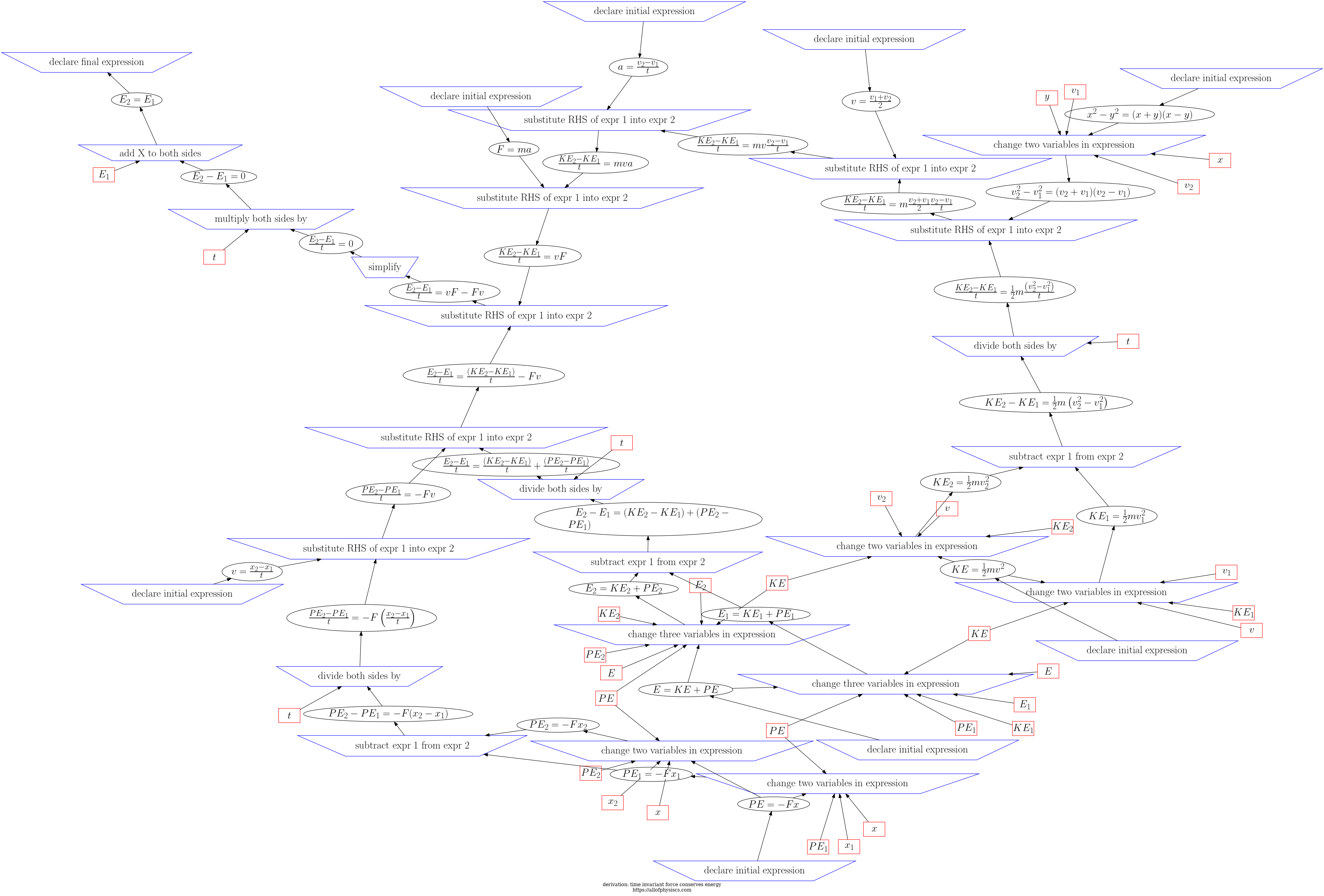

This page contains three views of the steps in the derivation: d3js, graphviz PNG, and a table.


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Notes for this derivation:

Options
Alternate views of this derivation:
Edit this content:

To edit a step, click on the number in the "Index" column in the table below

Clicking on the step index will take you to the page where you can edit that step.

Index Inference Rule Input latex Feeds latex Output latex step validity dimension check unit check notes
27 substitute RHS of expr 1 into expr 2
  1. 9337785146; locally 6154610:
    \(v = \frac{x_2 - x_1}{t}\)
    \(pdg_{1357} = \frac{- pdg_{3852} + pdg_{5467}}{pdg_{1467}}\)
  2. 7267155233; locally 7539016:
    \(\frac{PE_2 - PE_1}{t} = -F \left( \frac{x_2 - x_1}{t} \right)\)
    \(\frac{- pdg_{4093} + pdg_{8849}}{pdg_{1467}} = - \frac{pdg_{4202} \left(- pdg_{3852} + pdg_{5467}\right)}{pdg_{1467}}\)
  1. 4872970974; locally 9383749:
    \(\frac{PE_2 - PE_1}{t} = -F v\)
    \(\frac{- pdg_{4093} + pdg_{8849}}{pdg_{1467}} = - pdg_{1357} pdg_{4202}\)
valid 9337785146:
7267155233:
4872970974:
9337785146:
7267155233:
4872970974:
14 substitute RHS of expr 1 into expr 2
  1. 4648451961; locally 8696678:
    \(v_2^2 - v_1^2 = (v_2 + v_1)(v_2 - v_1)\)
    \(- pdg_{2473}^{2} + pdg_{4770}^{2} = \left(- pdg_{2473} + pdg_{4770}\right) \left(pdg_{2473} + pdg_{4770}\right)\)
  2. 4270680309; locally 3040361:
    \(\frac{KE_2 - KE_1}{t} = \frac{1}{2} m \frac{\left( v_2^2 - v_1^2 \right)}{t}\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = \frac{pdg_{5156} \left(- pdg_{2473}^{2} + pdg_{4770}^{2}\right)}{2 pdg_{1467}}\)
  1. 9356924046; locally 6246951:
    \(\frac{KE_2 - KE_1}{t} = m \frac{v_2 + v_1}{2} \frac{ v_2 - v_1 }{t}\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = \frac{pdg_{5156} \left(- pdg_{2473} + pdg_{4770}\right) \left(\frac{pdg_{2473}}{2} + \frac{pdg_{4770}}{2}\right)}{pdg_{1467}}\)
valid 4648451961:
4270680309:
9356924046:
4648451961:
4270680309:
9356924046:
18 substitute RHS of expr 1 into expr 2
  1. 2857430695; locally 6973462:
    \(a = \frac{v_2 - v_1}{t}\)
    \(pdg_{9140} = \frac{- pdg_{2473} + pdg_{4770}}{pdg_{1467}}\)
  2. 7735737409; locally 6733685:
    \(\frac{KE_2 - KE_1}{t} = m v \frac{ v_2 - v_1 }{t}\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = \frac{pdg_{1357} pdg_{5156} \left(- pdg_{2473} + pdg_{4770}\right)}{pdg_{1467}}\)
  1. 4784793837; locally 4876963:
    \(\frac{KE_2 - KE_1}{t} = m v a\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = pdg_{1357} pdg_{5156} pdg_{9140}\)
valid 2857430695:
7735737409:
4784793837:
2857430695:
7735737409:
4784793837:
31 simplify
  1. 1772416655; locally 5300304:
    \(\frac{E_2 - E_1}{t} = v F - F v\)
    \(\frac{pdg_{4550} - pdg_{5579}}{pdg_{1467}} = 0\)
  1. 1809909100; locally 6495233:
    \(\frac{E_2 - E_1}{t} = 0\)
    \(\frac{pdg_{4550} - pdg_{5579}}{pdg_{1467}} = 0\)
valid 1772416655: error for dim with 1772416655
1809909100:
1772416655: N/A
1809909100:
32 multiply both sides by
  1. 1809909100; locally 6495233:
    \(\frac{E_2 - E_1}{t} = 0\)
    \(\frac{pdg_{4550} - pdg_{5579}}{pdg_{1467}} = 0\)
  1. 5778176146:
    \(t\)
    \(pdg_{1467}\)
  1. 3806977900; locally 2075807:
    \(E_2 - E_1 = 0\)
    \(pdg_{4550} - pdg_{5579} = 0\)
valid 1809909100:
3806977900:
1809909100:
3806977900:
6 declare initial expr
  1. 8357234146; locally 6559987:
    \(KE = \frac{1}{2} m v^2\)
    \(pdg_{4929} = \frac{pdg_{1357}^{2} pdg_{5156}}{2}\)
no validation is available for declarations 8357234146:
8357234146:
17 substitute RHS of expr 1 into expr 2
  1. 9397152918; locally 3484339:
    \(v = \frac{v_1 + v_2}{2}\)
    \(pdg_{1357} = \frac{pdg_{2473}}{2} + \frac{pdg_{4770}}{2}\)
  2. 9356924046; locally 6246951:
    \(\frac{KE_2 - KE_1}{t} = m \frac{v_2 + v_1}{2} \frac{ v_2 - v_1 }{t}\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = \frac{pdg_{5156} \left(- pdg_{2473} + pdg_{4770}\right) \left(\frac{pdg_{2473}}{2} + \frac{pdg_{4770}}{2}\right)}{pdg_{1467}}\)
  1. 7735737409; locally 6733685:
    \(\frac{KE_2 - KE_1}{t} = m v \frac{ v_2 - v_1 }{t}\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = \frac{pdg_{1357} pdg_{5156} \left(- pdg_{2473} + pdg_{4770}\right)}{pdg_{1467}}\)
valid 9397152918:
9356924046:
7735737409:
9397152918:
9356924046:
7735737409:
29 substitute RHS of expr 1 into expr 2
  1. 4872970974; locally 9383749:
    \(\frac{PE_2 - PE_1}{t} = -F v\)
    \(\frac{- pdg_{4093} + pdg_{8849}}{pdg_{1467}} = - pdg_{1357} pdg_{4202}\)
  2. 2770069250; locally 2692856:
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} + \frac{(PE_2 - PE_1)}{t}\)
    \(\frac{pdg_{4550} - pdg_{5579}}{pdg_{1467}} = \frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} + \frac{- pdg_{4093} + pdg_{8849}}{pdg_{1467}}\)
  1. 3591237106; locally 9714818:
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} - F v\)
    \(\frac{pdg_{4550} - pg_{5579}}{pdg_{1467}} = - pdg_{1357} pdg_{4202} + \frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}}\)
LHS diff is (-pdg5579 + pg5579)/pdg1467 RHS diff is (pdg1357*pdg1467*pdg4202 - pdg4093 + pdg8849)/pdg1467 4872970974:
2770069250:
3591237106: error for dim with 3591237106
 4872970974:
2770069250:
3591237106: N/A
7 change two variables in expr
  1. 8357234146; locally 6559987:
    \(KE = \frac{1}{2} m v^2\)
    \(pdg_{4929} = \frac{pdg_{1357}^{2} pdg_{5156}}{2}\)
  1. 6383056612:
    \(KE\)
    \(pdg_{4929}\)
  2. 6838659900:
    \(KE_2\)
    \(pdg_{1352}\)
  3. 9305761407:
    \(v\)
    \(pdg_{1357}\)
  4. 5011888122:
    \(v_2\)
    \(pdg_{4770}\)
  1. 7676652285; locally 6632540:
    \(KE_2 = \frac{1}{2} m v_2^2\)
    \(pdg_{1352} = \frac{pdg_{4770}^{2} pdg_{5156}}{2}\)
valid 8357234146:
7676652285:
8357234146:
7676652285:
11 divide both sides by
  1. 5733146966; locally 9602854:
    \(KE_2 - KE_1 = \frac{1}{2} m \left(v_2^2 - v_1^2\right)\)
    \(pdg_{1352} - pdg_{1955} = \frac{pdg_{5156} \left(- pdg_{2473}^{2} + pdg_{4770}^{2}\right)}{2}\)
  1. 6554292307:
    \(t\)
    \(pdg_{1467}\)
  1. 4270680309; locally 3040361:
    \(\frac{KE_2 - KE_1}{t} = \frac{1}{2} m \frac{\left( v_2^2 - v_1^2 \right)}{t}\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = \frac{pdg_{5156} \left(- pdg_{2473}^{2} + pdg_{4770}^{2}\right)}{2 pdg_{1467}}\)
valid 5733146966:
4270680309:
5733146966:
4270680309:
1 declare initial expr
  1. 5136652623; locally 8844119:
    \(E = KE + PE\)
    \(pdg_{4931} = pdg_{4929} + pdg_{4930}\)
no validation is available for declarations 5136652623:
5136652623:
2 change three variables in expr
  1. 5136652623; locally 8844119:
    \(E = KE + PE\)
    \(pdg_{4931} = pdg_{4929} + pdg_{4930}\)
  1. 1258245373:
    \(E\)
    \(pdg_{4931}\)
  2. 2344320475:
    \(E_2\)
    \(pdg_{4550}\)
  3. 6383056612:
    \(KE\)
    \(pdg_{4929}\)
  4. 7939947931:
    \(KE_2\)
    \(pdg_{1352}\)
  5. 5075406409:
    \(PE\)
    \(pdg_{4930}\)
  6. 5803210729:
    \(PE_2\)
    \(pdg_{8849}\)
  1. 7875206161; locally 5642407:
    \(E_2 = KE_2 + PE_2\)
    \(pdg_{4550} = pdg_{1352} + pdg_{8849}\)
valid 5136652623:
7875206161:
5136652623:
7875206161:
28 divide both sides by
  1. 5514556106; locally 2443387:
    \(E_2 - E_1 = (KE_2 - KE_1) + (PE_2 - PE_1)\)
    \(pdg_{4550} - pdg_{5579} = pdg_{1352} - pdg_{1955} - pdg_{4093} + pdg_{8849}\)
  1. 2081689540:
    \(t\)
    \(pdg_{1467}\)
  1. 2770069250; locally 2692856:
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} + \frac{(PE_2 - PE_1)}{t}\)
    \(\frac{pdg_{4550} - pdg_{5579}}{pdg_{1467}} = \frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} + \frac{- pdg_{4093} + pdg_{8849}}{pdg_{1467}}\)
valid 5514556106:
2770069250:
5514556106:
2770069250:
10 subtract expr 1 from expr 2
  1. 4928007622; locally 4208138:
    \(KE_1 = \frac{1}{2} m v_1^2\)
    \(pdg_{1955} = \frac{pdg_{2473}^{2} pdg_{5156}}{2}\)
  2. 7676652285; locally 6632540:
    \(KE_2 = \frac{1}{2} m v_2^2\)
    \(pdg_{1352} = \frac{pdg_{4770}^{2} pdg_{5156}}{2}\)
  1. 5733146966; locally 9602854:
    \(KE_2 - KE_1 = \frac{1}{2} m \left(v_2^2 - v_1^2\right)\)
    \(pdg_{1352} - pdg_{1955} = \frac{pdg_{5156} \left(- pdg_{2473}^{2} + pdg_{4770}^{2}\right)}{2}\)
valid 4928007622:
7676652285:
5733146966:
4928007622:
7676652285:
5733146966:
16 declare initial expr
  1. 2857430695; locally 6973462:
    \(a = \frac{v_2 - v_1}{t}\)
    \(pdg_{9140} = \frac{- pdg_{2473} + pdg_{4770}}{pdg_{1467}}\)
no validation is available for declarations 2857430695:
2857430695:
25 divide both sides by
  1. 7734996511; locally 1550851:
    \(PE_2 - PE_1 = -F ( x_2 - x_1 )\)
    \(- pdg_{4093} + pdg_{8849} = - pdg_{4202} \left(- pdg_{3852} + pdg_{5467}\right)\)
  1. 2016063530:
    \(t\)
    \(pdg_{1467}\)
  1. 7267155233; locally 7539016:
    \(\frac{PE_2 - PE_1}{t} = -F \left( \frac{x_2 - x_1}{t} \right)\)
    \(\frac{- pdg_{4093} + pdg_{8849}}{pdg_{1467}} = - \frac{pdg_{4202} \left(- pdg_{3852} + pdg_{5467}\right)}{pdg_{1467}}\)
valid 7734996511:
7267155233:
7734996511:
7267155233:
23 change two variables in expr
  1. 6715248283; locally 8497204:
    \(PE = -F x\)
    \(pdg_{4930} = - pdg_{4037} pdg_{4202}\)
  1. 3809726424:
    \(PE\)
    \(pdg_{4930}\)
  2. 6749533119:
    \(PE_1\)
    \(pdg_{4093}\)
  3. 4218009993:
    \(x\)
    \(pdg_{4037}\)
  4. 1552869972:
    \(x_1\)
    \(pdg_{3852}\)
  1. 4669290568; locally 9081932:
    \(PE_1 = -F x_1\)
    \(pdg_{4093} = - pdg_{3852} pdg_{4202}\)
valid 6715248283:
4669290568:
6715248283:
4669290568:
19 declare initial expr
  1. 5345738321; locally 8447573:
    \(F = m a\)
    \(pdg_{4202} = pdg_{5156} pdg_{9140}\)
no validation is available for declarations 5345738321:
5345738321:
22 change two variables in expr
  1. 6715248283; locally 8497204:
    \(PE = -F x\)
    \(pdg_{4930} = - pdg_{4037} pdg_{4202}\)
  1. 5075406409:
    \(PE\)
    \(pdg_{4930}\)
  2. 4522137851:
    \(PE_2\)
    \(pdg_{8849}\)
  3. 4188639044:
    \(x\)
    \(pdg_{4037}\)
  4. 4755369593:
    \(x_2\)
    \(pdg_{5467}\)
  1. 2431507955; locally 3988671:
    \(PE_2 = -F x_2\)
    \(pdg_{8849} = - pdg_{4202} pdg_{5467}\)
valid 6715248283:
2431507955:
6715248283:
2431507955:
assumes constant force
5 subtract expr 1 from expr 2
  1. 4303372136; locally 1298003:
    \(E_1 = KE_1 + PE_1\)
    \(pdg_{5579} = pdg_{1955} + pdg_{4093}\)
  2. 7875206161; locally 5642407:
    \(E_2 = KE_2 + PE_2\)
    \(pdg_{4550} = pdg_{1352} + pdg_{8849}\)
  1. 5514556106; locally 2443387:
    \(E_2 - E_1 = (KE_2 - KE_1) + (PE_2 - PE_1)\)
    \(pdg_{4550} - pdg_{5579} = pdg_{1352} - pdg_{1955} - pdg_{4093} + pdg_{8849}\)
valid 4303372136:
7875206161:
5514556106:
4303372136:
7875206161:
5514556106:
34 declare final expr
  1. 8558338742; locally 1781127:
    \(E_2 = E_1\)
    \(pdg_{4550} = pdg_{5579}\)
no validation is available for declarations 8558338742:
8558338742:
20 substitute RHS of expr 1 into expr 2
  1. 5345738321; locally 8447573:
    \(F = m a\)
    \(pdg_{4202} = pdg_{5156} pdg_{9140}\)
  2. 4784793837; locally 4876963:
    \(\frac{KE_2 - KE_1}{t} = m v a\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = pdg_{1357} pdg_{5156} pdg_{9140}\)
  1. 2186083170; locally 7034924:
    \(\frac{KE_2 - KE_1}{t} = v F\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = pdg_{1357} pdg_{4202}\)
valid 5345738321:
4784793837:
2186083170: dimensions are consistent
 5345738321:
4784793837:
2186083170: N/A
12 declare initial expr
  1. 5781981178; locally 2776565:
    \(x^2 - y^2 = (x+y)(x-y)\)
    \(- pdg_{1452}^{2} + pdg_{1464}^{2} = \left(- pdg_{1452} + pdg_{1464}\right) \left(pdg_{1452} + pdg_{1464}\right)\)
no validation is available for declarations 5781981178:
5781981178:
8 change two variables in expr
  1. 8357234146; locally 6559987:
    \(KE = \frac{1}{2} m v^2\)
    \(pdg_{4929} = \frac{pdg_{1357}^{2} pdg_{5156}}{2}\)
  1. 4147101187:
    \(KE\)
    \(pdg_{4929}\)
  2. 6964468708:
    \(KE_1\)
    \(pdg_{1955}\)
  3. 5398681503:
    \(v\)
    \(pdg_{1357}\)
  4. 3105350101:
    \(v_1\)
    \(pdg_{2473}\)
  1. 4928007622; locally 4208138:
    \(KE_1 = \frac{1}{2} m v_1^2\)
    \(pdg_{1955} = \frac{pdg_{2473}^{2} pdg_{5156}}{2}\)
valid 8357234146:
4928007622:
8357234146:
4928007622:
21 declare initial expr
  1. 6715248283; locally 8497204:
    \(PE = -F x\)
    \(pdg_{4930} = - pdg_{4037} pdg_{4202}\)
no validation is available for declarations 6715248283:
6715248283:
24 subtract expr 1 from expr 2
  1. 4669290568; locally 9081932:
    \(PE_1 = -F x_1\)
    \(pdg_{4093} = - pdg_{3852} pdg_{4202}\)
  2. 2431507955; locally 3988671:
    \(PE_2 = -F x_2\)
    \(pdg_{8849} = - pdg_{4202} pdg_{5467}\)
  1. 7734996511; locally 1550851:
    \(PE_2 - PE_1 = -F ( x_2 - x_1 )\)
    \(- pdg_{4093} + pdg_{8849} = - pdg_{4202} \left(- pdg_{3852} + pdg_{5467}\right)\)
valid 4669290568:
2431507955:
7734996511:
4669290568:
2431507955:
7734996511:
33 add X to both sides
  1. 3806977900; locally 2075807:
    \(E_2 - E_1 = 0\)
    \(pdg_{4550} - pdg_{5579} = 0\)
  1. 5960438249:
    \(E_1\)
    \(pdg_{5579}\)
  1. 8558338742; locally 1781127:
    \(E_2 = E_1\)
    \(pdg_{4550} = pdg_{5579}\)
valid 3806977900:
8558338742:
3806977900:
8558338742:
13 change two variables in expr
  1. 5781981178; locally 2776565:
    \(x^2 - y^2 = (x+y)(x-y)\)
    \(- pdg_{1452}^{2} + pdg_{1464}^{2} = \left(- pdg_{1452} + pdg_{1464}\right) \left(pdg_{1452} + pdg_{1464}\right)\)
  1. 1025759423:
    \(y\)
    \(pdg_{1452}\)
  2. 5239755033:
    \(v_1\)
    \(pdg_{2473}\)
  3. 8173074178:
    \(x\)
    \(pdg_{1464}\)
  4. 4319470443:
    \(v_2\)
    \(pdg_{4770}\)
  1. 4648451961; locally 8696678:
    \(v_2^2 - v_1^2 = (v_2 + v_1)(v_2 - v_1)\)
    \(- pdg_{2473}^{2} + pdg_{4770}^{2} = \left(- pdg_{2473} + pdg_{4770}\right) \left(pdg_{2473} + pdg_{4770}\right)\)
valid 5781981178:
4648451961:
5781981178:
4648451961:
26 declare initial expr
  1. 9337785146; locally 6154610:
    \(v = \frac{x_2 - x_1}{t}\)
    \(pdg_{1357} = \frac{- pdg_{3852} + pdg_{5467}}{pdg_{1467}}\)
no validation is available for declarations 9337785146:
9337785146:
15 declare initial expr
  1. 9397152918; locally 3484339:
    \(v = \frac{v_1 + v_2}{2}\)
    \(pdg_{1357} = \frac{pdg_{2473}}{2} + \frac{pdg_{4770}}{2}\)
no validation is available for declarations 9397152918:
9397152918:
3 change three variables in expr
  1. 5136652623; locally 8844119:
    \(E = KE + PE\)
    \(pdg_{4931} = pdg_{4929} + pdg_{4930}\)
  1. 3749492596:
    \(E\)
    \(pdg_{4931}\)
  2. 4213426349:
    \(E_1\)
    \(pdg_{5579}\)
  3. 4147101187:
    \(KE\)
    \(pdg_{4929}\)
  4. 1092872200:
    \(KE_1\)
    \(pdg_{1955}\)
  5. 3809726424:
    \(PE\)
    \(pdg_{4930}\)
  6. 8061701434:
    \(PE_1\)
    \(pdg_{4093}\)
  1. 4303372136; locally 1298003:
    \(E_1 = KE_1 + PE_1\)
    \(pdg_{5579} = pdg_{1955} + pdg_{4093}\)
valid 5136652623:
4303372136:
5136652623:
4303372136:
30 substitute RHS of expr 1 into expr 2
  1. 2186083170; locally 7034924:
    \(\frac{KE_2 - KE_1}{t} = v F\)
    \(\frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}} = pdg_{1357} pdg_{4202}\)
  2. 3591237106; locally 9714818:
    \(\frac{E_2 - E_1}{t} = \frac{(KE_2 - KE_1)}{t} - F v\)
    \(\frac{pdg_{4550} - pg_{5579}}{pdg_{1467}} = - pdg_{1357} pdg_{4202} + \frac{pdg_{1352} - pdg_{1955}}{pdg_{1467}}\)
  1. 1772416655; locally 5300304:
    \(\frac{E_2 - E_1}{t} = v F - F v\)
    \(\frac{pdg_{4550} - pdg_{5579}}{pdg_{1467}} = 0\)
LHS diff is (pdg5579 - pg5579)/pdg1467 RHS diff is 0 2186083170: dimensions are consistent
3591237106: error for dim with 3591237106
1772416655: error for dim with 1772416655
 2186083170: N/A
3591237106: N/A
1772416655: N/A
Physics Derivation Graph: Steps for time invariant force conserves energy

Symbols for this derivation

See also all 227 symbols
symbol ID category latex scope dimension name value Used in derivations references
4550 variable E_2
\(E_2\)		 real
  • length: 2
  • mass: 1
  • time: -2
 energy 2
  • str_note
9
4929 variable KE
\(KE\)		 ['real']
  • length: 2
  • mass: 1
  • time: -2
 kinetic energy 7
2473 variable v_1
\(v_1\)		 real
  • length: 1
  • time: -1
 velocity 1 14
5467 variable x_2
\(x_2\)		 real
  • length: 1
 position 2
  • str_note
5
1352 variable KE_2
\(KE_2\)		 real
  • length: 2
  • mass: 1
  • time: -2
 kinetic energy 14
1357 variable v
\(v\)		 ['real']
  • length: 1
  • time: -1
 velocity 83
1955 variable KE_1
\(KE_1\)		 real
  • length: 2
  • mass: 1
  • time: -2
 kinetic energy 17
8849 variable PE_2
\(PE_2\)		 real
  • length: 2
  • mass: 1
  • time: -2
 potential energy 11
1464 variable x
\(x\)		 ['real'] dimensionless 140
4202 variable F
\(F\)		 ['real']
  • length: 1
  • mass: 1
  • time: -2
 force 21
9140 variable a
\(a\)		 ['real']
  • length: 1
  • time: -2
 acceleration 31
1452 variable y
\(y\)		 ['real'] dimensionless 13
4093 variable PE_1
\(PE_1\)		 real
  • length: 2
  • mass: 1
  • time: -2
 kinetic energy 12
5579 variable E_1
\(E_1\)		 real
  • length: 2
  • mass: 1
  • time: -2
 energy 1
  • str_note
9
4037 variable x
\(x\)		 ['real']
  • length: 1
 position 53
1467 variable t
\(t\)		 ['real']
  • time: 1
 time 121
4770 variable v_2
\(v_2\)		 real
  • length: 1
  • time: -1
 velocity 2 14
5156 variable m
\(m\)		 ['real']
  • mass: 1
 mass 69
3852 variable x_1
\(x_1\)		 real
  • length: 1
 position 1
  • str_note
5
4930 variable PE
\(PE\)		 ['real']
  • length: 2
  • mass: 1
  • time: -2
 potential energy 4
4931 variable E
\(E\)		 ['real']
  • length: 2
  • mass: 1
  • time: -2
 energy 10
MESSAGE:
