Review Schwarzschild radius for non-rotating black hole

abstract:
reference: https://en.wikipedia.org/wiki/Derivation_of_the_Schwarzschild_solution

step	inference rule	input	feed	output	step validity (as per SymPy)
1	111483: raise both sides to power number of inputs: 1; feeds: 1; outputs: 1 Raise both sides of Eq.~\\ref{eq:#2} to $#1$; yields Eq.~\\ref{eq:#3}.	5404822208 $v_{\rm escape}=\sqrt{2 G \frac{m}{r}}$	3663007361 $2$	8946383937 $v_{\rm escape}^2=2 G \frac{m}{r}$	recognized infrule but not yet supported
2	111984: change two variables in expression number of inputs: 1; feeds: 4; outputs: 1 Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\\ref{eq:#5}; yields Eq.~\\ref{eq:#6}.	8946383937 $v_{\rm escape}^2=2 G \frac{m}{r}$	1238593037 $c$ 2660368546 $r$ 8362338572 $v_{\rm escape}$ 9933742680 $r_{\rm Schwarzschild}$	4275004561 $c^2=2 G \frac{m}{r_{\rm Schwarzschild}}$	list index out of range
3	111182: multiply both sides by number of inputs: 1; feeds: 1; outputs: 1 Multiply both sides of Eq.~\\ref{eq:#2} by $#1$; yields Eq.~\\ref{eq:#3}.	4275004561 $c^2=2 G \frac{m}{r_{\rm Schwarzschild}}$	7194432406 $r_{\rm Schwarzschild}$	2883079365 $r_{\rm Schwarzschild} c^2=2 G m$	valid
4	111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\\ref{eq:#2} by $#1$; yields Eq.~\\ref{eq:#3}.	2883079365 $r_{\rm Schwarzschild} c^2=2 G m$	7263534144 $c^2$	6800170830 $r_{\rm Schwarzschild}=\frac{2 G m}{c^2}$	valid

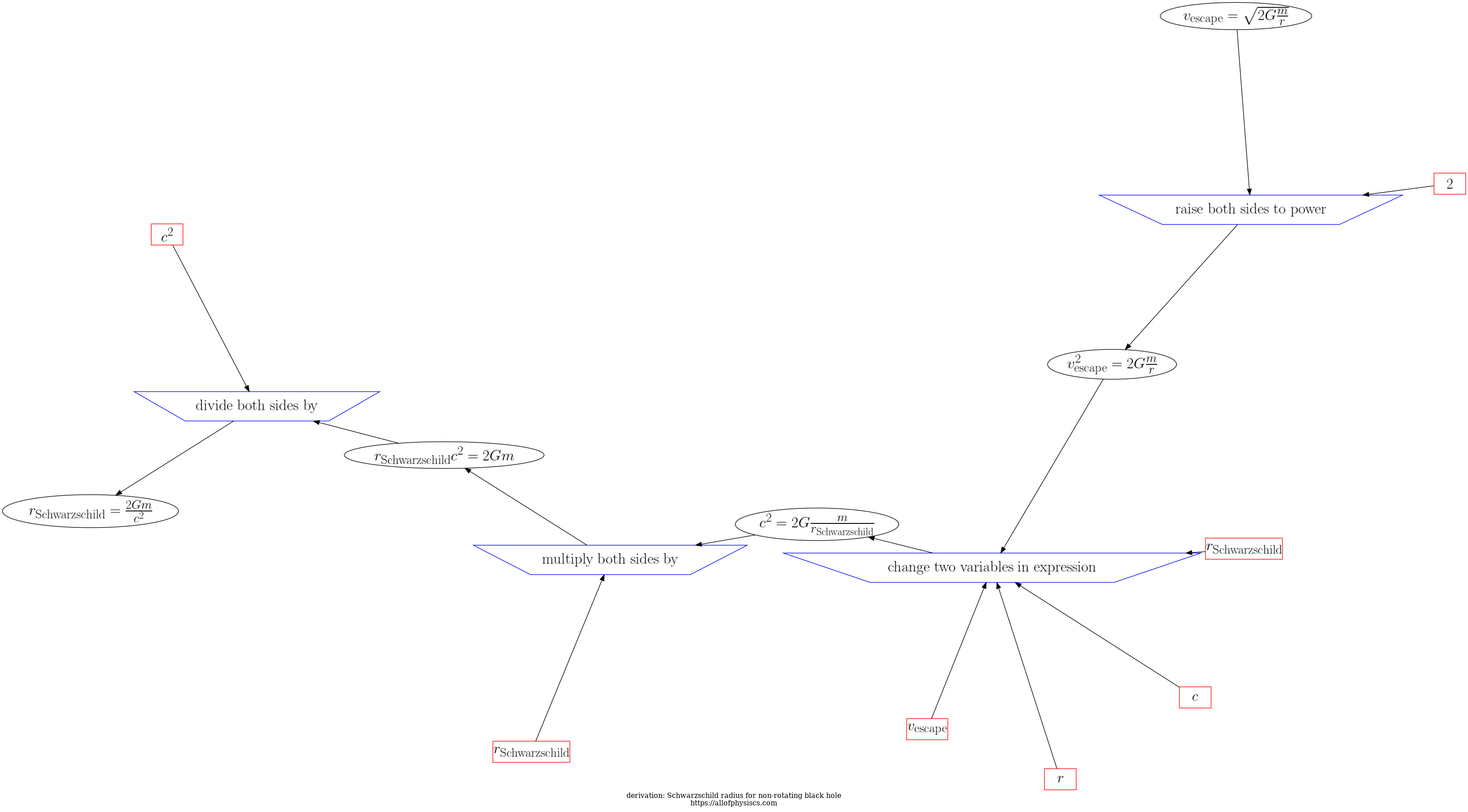

Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Actions: Edit Derivation

Generate Tex file or PDF file

Delete Derivation and all associated steps

This does not remove expressions, symbols, and operations.
